Octo Pulse 4 Wave Pump with WaveEngine LE Controller - Reef Octopus

Octo Pulse 4 Wave Pump with HYDROS WaveEngine LE Controller

Max flow: 4,500 GPH | Power: 11–32 W | Tank size: 80–500+ gallons

Includes: Octo Pulse 4 pump with magnetic mount, HYDROS WaveEngine LE controller and power supply.

Mount fits glass or acrylic aquariums up to 5/8 in. thick.

Massive water movement

The Octo Pulse 4 is a fully controllable flow pump that moves up to 4,500 GPH and draws no more than 32 watts. Its broad flow encourages coral growth instead of blasting corals with the harmful "hot spots" associated with other wave pumps.

Direct flow where you need it most

The 360° magnetic mount lets you aim the Octo Pulse precisely. The rear of the pump has a convex, rounded shape that sits in a concave mounting magnet, so the pump can gyrate in any direction. The low-profile mount offers a 25° range of motion, and the whole pump rotates 360°.

Octo Pulse pump features

• 360° range of adjustment
• Articulating magnetic mount
• Strong rare-earth magnet impeller
• Compact, durable construction
• Silent operation
• Waterproof magnet mounts
• HYDROS WaveEngine and WaveEngine LE Direct Drive compatible
• 2-year limited warranty on the pump

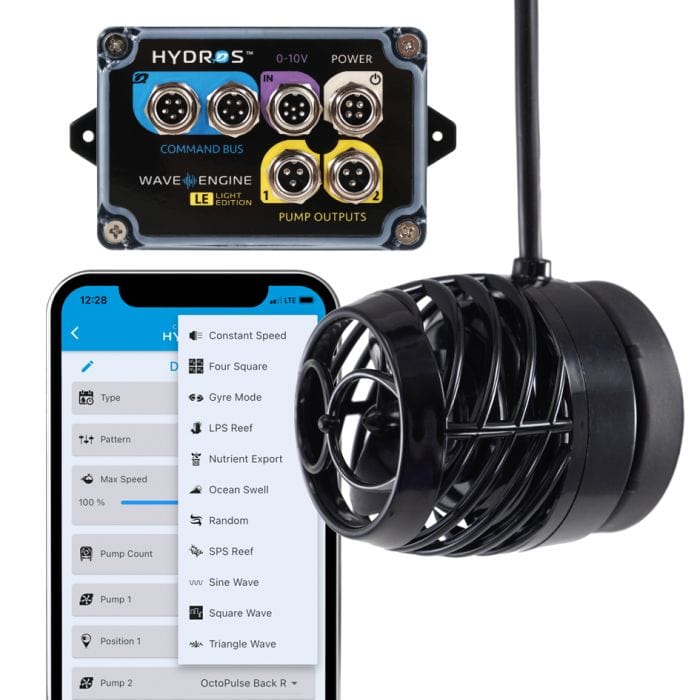

HYDROS WaveEngine LE: app-based dual pump control

The WaveEngine LE ("Light Edition") connects directly to the pump head, so you don't need a separate pump controller or power brick. Connect up to two pumps, set the minimum and maximum speed for each, and run them together in presets such as sync, anti-sync, triangle wave, square wave and sine wave from the HYDROS app.

• Create multiple pump groups
• Feed, Water Change and Night modes
• Monitor volts, amps and watts for each pump and for all pumps combined
• Monitor pump RPM
• Cloud connectivity, so you can control your pumps from anywhere
• Real-time notifications of system status and pump performance
• Custom flow patterns of any duration up to 24 hours, with 1/1000-second accuracy
• 0-10V input to receive commands from other devices, including push buttons and float switches
• Powers up to 2 pumps from the Direct Drive ports using a single 100/240 V, 4 A input power supply (included); output is 24 V / 6 A

Direct Drive compatible pumps

• Reef Octopus RODC-2500, 3500 and 5500, VarioS-2 and VarioS-4, Octo Pulse 2 and Octo Pulse 4
• IceCap Gyre 1K, 2K, 3K and 4K
• Maxspect Gyre XF-130/230, XF-150/250, XF-330/350 and XF-280*

*Maxspect Gyre XF-280 pumps can only run at 75% max intensity.

Adding a second pump? Each additional pump needs the appropriate adapter or 0-10V cable (sold separately), such as the HYDROS Direct Drive Reef Octopus VarioS/Octo Pulse adapter.

Octo Pulse 2 vs Octo Pulse 4: which version do you need?

Reef Octopus sells the Octo Pulse (often searched as "OctoPulse") in two sizes and three packages. Pick the size for your tank, then pick how you want to power and control it.

Already run a HYDROS WaveEngine or WaveEngine LE? The Pump Only version costs less and plugs straight in with the adapter. Starting from scratch? The + kit is ready to run out of the box, and the WaveEngine LE bundle suits reefers who want to run pumps from different brands in one app. Compare every model in Reef Octopus powerheads.
