VorTech MP40mQD Expert Buying Guide

The EcoTech Marine VorTech MP40mQD occupies the middle position in the QuietDrive lineup, making it the model to examine for medium and large reef aquariums that need broad circulation without moving to the MP60mQD. Its maximum flow is listed at 5,000+ GPH, with an adjustable 9-to-37-watt power range and a stated aquarium range of 50 to 500+ gallons. Those figures are selection boundaries rather than a complete flow plan. Aquascape density, coral placement, overflow position, substrate response, and whether one or several pumps will be used all affect the appropriate operating level. The included QuietDrive controller provides the adjustment needed to tune the pump rather than running it at maximum output by default.

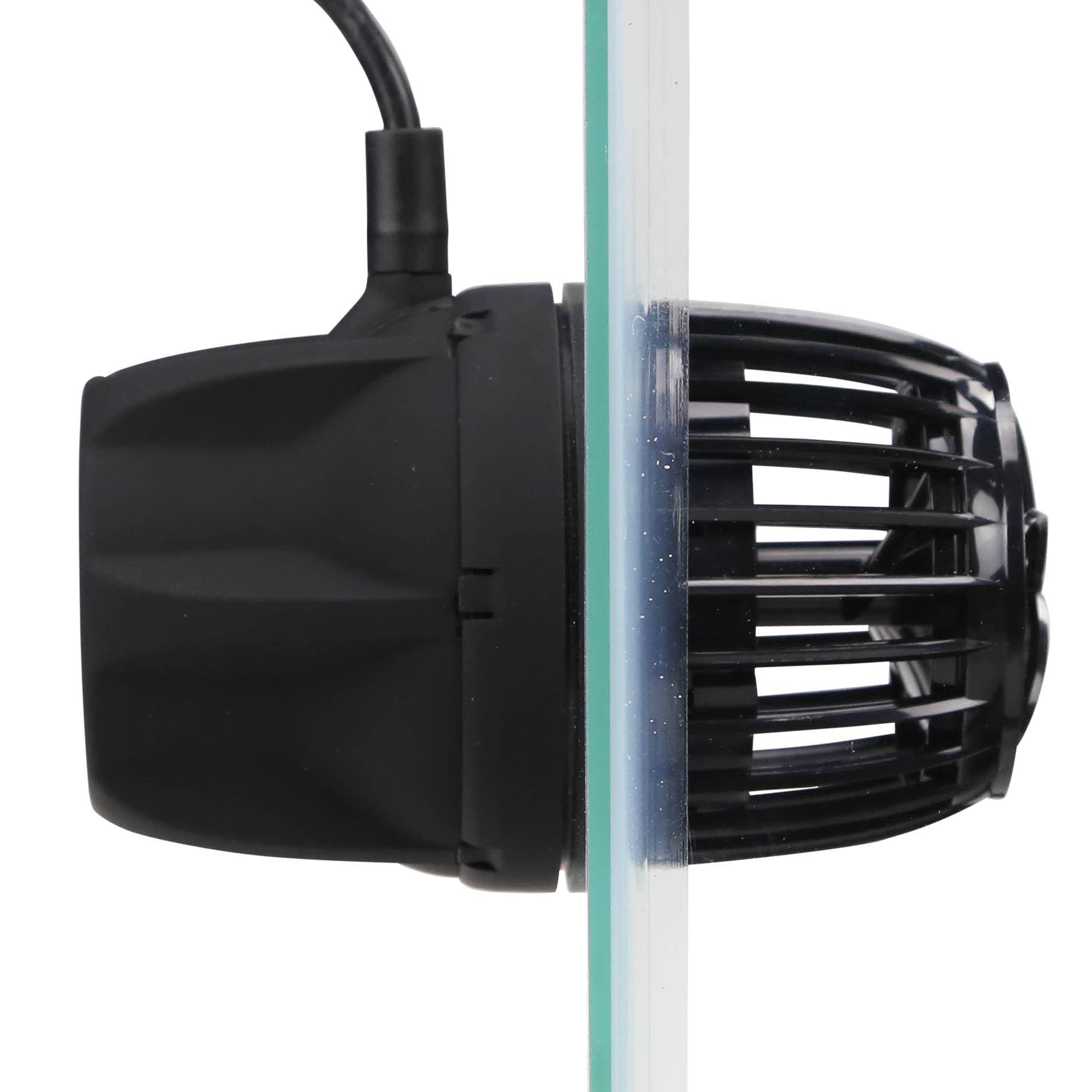

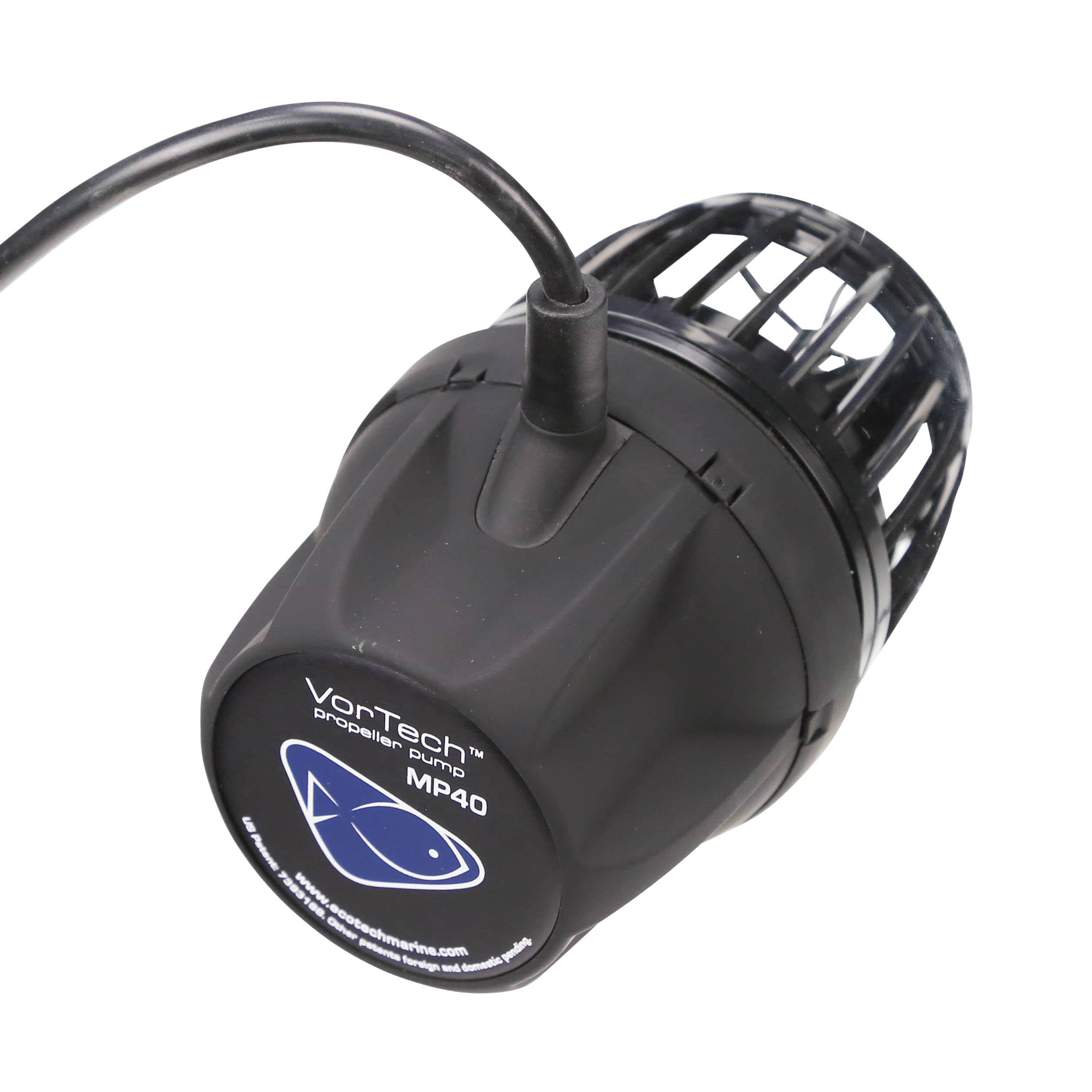

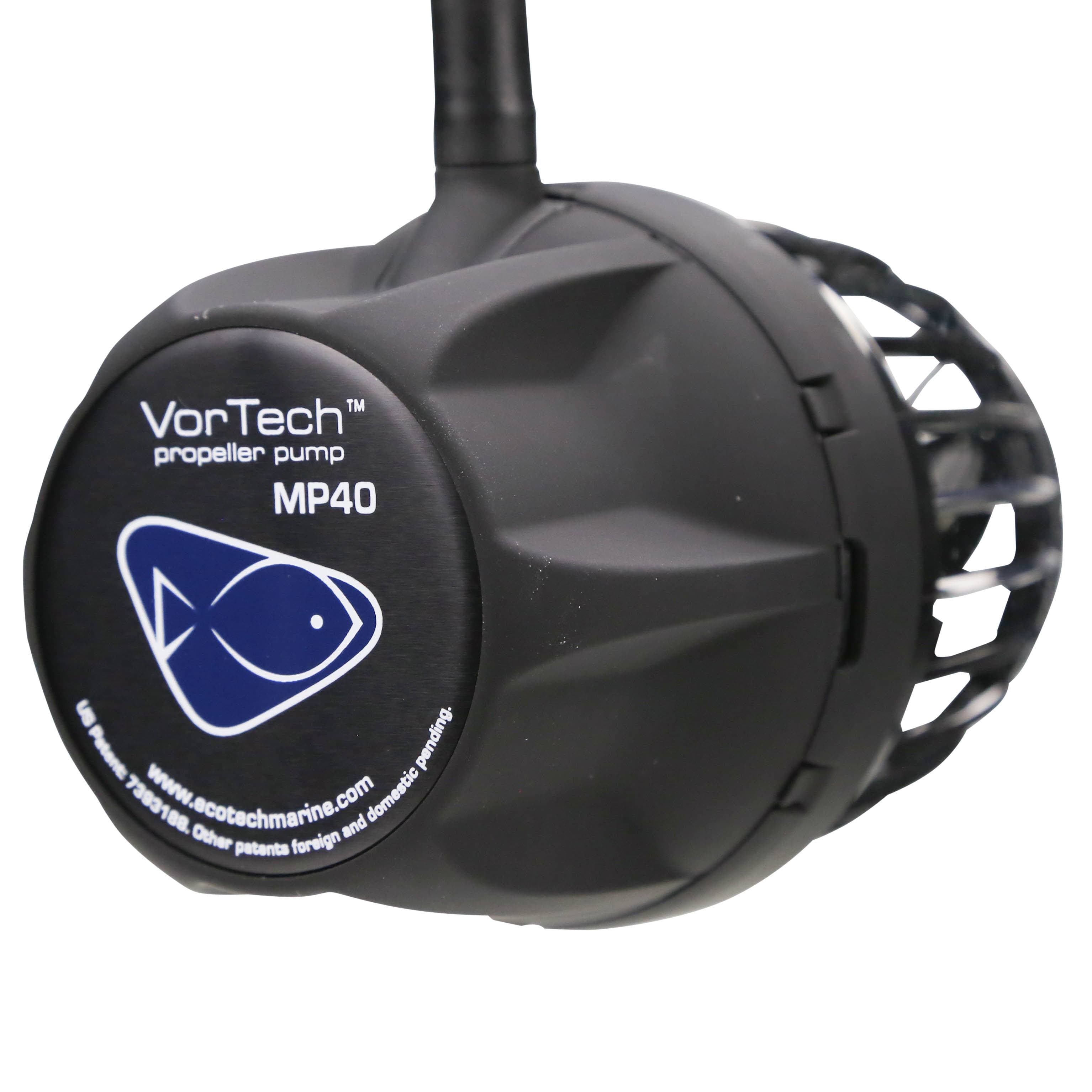

VorTech’s defining layout separates the motor from the in-tank propeller assembly. The powered driver remains outside the aquarium while the wet side couples to it magnetically through the tank wall. This keeps electrical components out of the water and leaves only the low-profile wet side visible inside the display. It also means installation depends on having an appropriate section of tank wall available for both halves of the pump. The MP40mQD supports a maximum wall thickness of 0.75 inches, or 19mm. Confirm the actual panel thickness at the intended mounting point before purchase, particularly on larger aquariums where different panels or structural sections may not share the same dimensions.

For broad cross-tank movement, a side-panel position is a practical starting point because it allows the MP40’s diffuse output to travel along the aquarium’s length. Exact height and intensity should then be adjusted around the aquascape and livestock. A setting that moves water across an open tank may interact differently with a dense rock structure, and maximum output may be unnecessary even in an aquarium within the stated size range. Watch how flow passes around rockwork, reaches the opposite side, and interacts with the sand bed and corals. The MP40’s broad pattern is intended to reduce concentrated flow hot spots, but placement and programming still determine how effectively circulation reaches obstructed areas.

A single MP40mQD can be configured for several circulation styles through the controller and Mobius app, but multiple-pump layouts offer additional options in longer or more structurally complex displays. Two pumps can be placed to work across the tank from opposing areas rather than forcing one unit to provide every circulation path. EcoTech specifically supports paired operation in Gyre Mode, where two pumps can alternate between clockwise and counterclockwise gyres lasting from two seconds to two hours. EcoTech also suggests pairing two wireless pumps for the full effect of Wave Auto Tune Mode. These coordinated layouts are particularly relevant when the objective is movement across the full aquarium rather than high velocity near one pump.

Gyre Mode is designed to create uniform circular movement that transports water from one side of the aquarium to the other. Reef Crest Mode instead changes speed frequently to emulate high-energy reef currents, while Lagoon Mode makes slower changes for a lower-energy pattern. Tidal Swell Mode ranges from calm movement to chaotic high flow and includes a programmed detritus-cleaning surge. These modes should not be treated as fixed coral prescriptions. They are different tools for shaping circulation, and the useful choice depends on the aquarium’s structure and animals. The adjustable output lets an aquarist begin conservatively, observe the entire tank, and refine intensity and scheduling without changing hardware.

Nutrient Transport Mode is especially relevant when pump placement is intended to support particle movement toward the filtration system. Its first phase uses wave motion to stir and suspend detritus; its second uses surging movement to push particles toward the overflow and filter. Tidal Swell Mode also includes a detritus-cleaning surge, while Wave Auto Tune can create a standing wave that helps lift material from the sand bed and rockwork. These programs do not remove detritus by themselves. Their role is to suspend and transport particles, so results still depend on the relationship among pump position, rockwork, overflow location, and filtration intake.

Short Pulse Mode allows intervals from 0.2 to two seconds and can produce a standing wave when the frequency matches the aquarium. Because tank dimensions and layout differ, the correct pulse setting must be tuned rather than assumed. Feed Mode provides a simpler operational function by turning linked wireless EcoTech pumps down to an idle speed, reducing the tendency for food to be driven immediately into rockwork or filtration. Night Mode can be enabled or disabled and assigned custom hours for calmer nighttime operation. Together, these controls allow the MP40mQD to change behavior through the day instead of relying on one constant output setting.

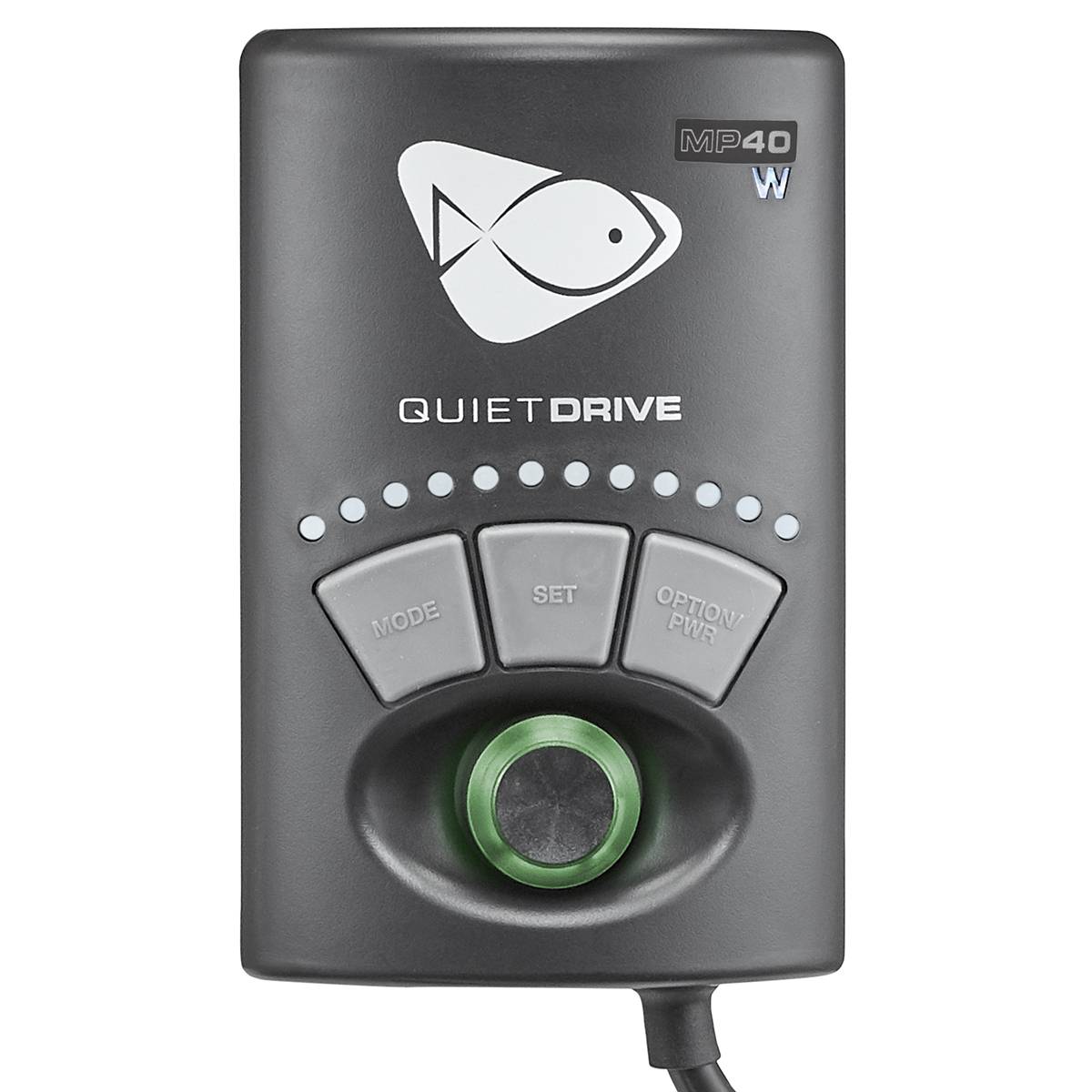

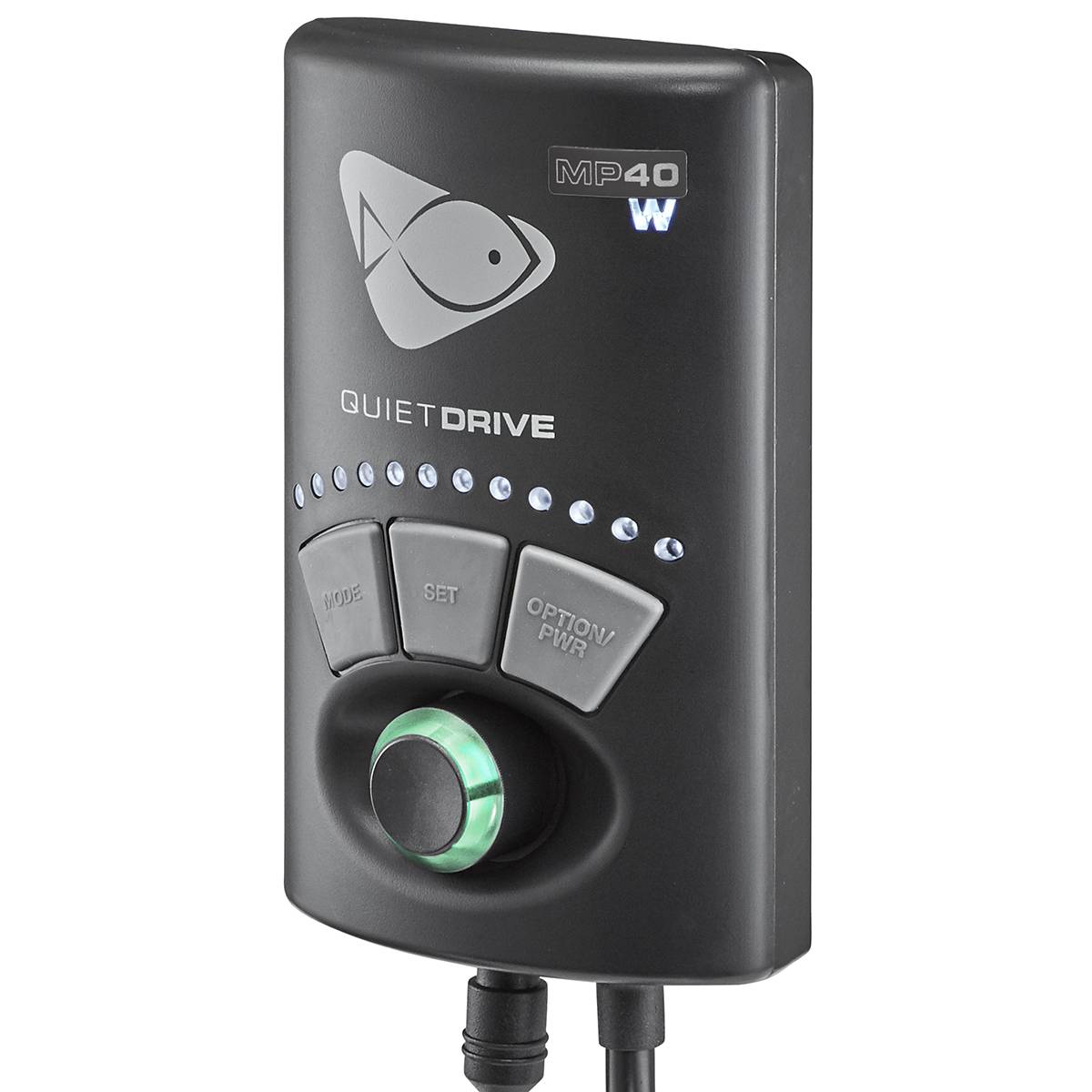

Mobius support is built into the MP40mQD, so wireless programming does not require an additional hub. The pump connects directly to a compatible iOS or Android device through the Mobius app. From there, the aquarist can access operating modes, adjust output, create schedules, set Night Mode hours, and coordinate multiple pumps. This is useful in a multi-MP40 layout because the pumps can be programmed as part of a circulation plan rather than adjusted independently without timing coordination. The included QuietDrive driver also provides local pump control, while Mobius expands scheduling and linked operation. The source identifies 12 available flow modes across the pump’s circulation and function options.

For Neptune Systems users, the MP40mQD is compatible with Apex and Apex Fusion through the MXM integration. MXM is the specified path for bringing supported EcoTech and AquaIllumination pumps and lights into the Apex interface, reducing the need to move among separate applications. MXM should therefore be included in the equipment plan when Apex-based wireless control is required; Apex compatibility is not described as a direct, hardware-free connection. Mobius remains ready without extra wireless equipment. The supplied product record does not state whether this MP40mQD can use EcoTech Battery Backup, so backup compatibility, connection requirements, and expected runtime should be confirmed separately rather than inferred from Mobius or MXM support.

Choosing between the MP10mQD, MP40mQD, and MP60mQD should begin with wall thickness as well as aquarium size. The MP10mQD is listed at 2,500+ GPH for 2.5-to-50+ gallon tanks and supports walls only up to 0.375 inches, or 9.5mm. The MP40mQD doubles that listed maximum flow to 5,000+ GPH, covers the stated 50-to-500+ gallon range, and supports up to 0.75 inches, or 19mm. This makes the MP40 materially different from the MP10 for larger displays and thicker panels. An aquarium near an overlap in the published size ranges should be evaluated by panel thickness, desired distribution, and the number of pump locations rather than gallon volume alone.

The MP60mQD is the larger alternative, with 9,000+ GPH maximum flow, a stated range of 120 to 1,000+ gallons, support for walls from 0.375 to 1.00 inches, or 9.5 to 26mm, and power consumption from 10 to 60 watts. Choose the MP60 when the required wall thickness exceeds the MP40’s 19mm limit or when its higher available output better fits the circulation plan. Choose the MP40 when 5,000+ GPH and the 19mm wall limit fit the installation, or when several medium-output pumps offer more useful placement options than one larger source. Published tank ranges overlap, so they do not make this choice automatically.

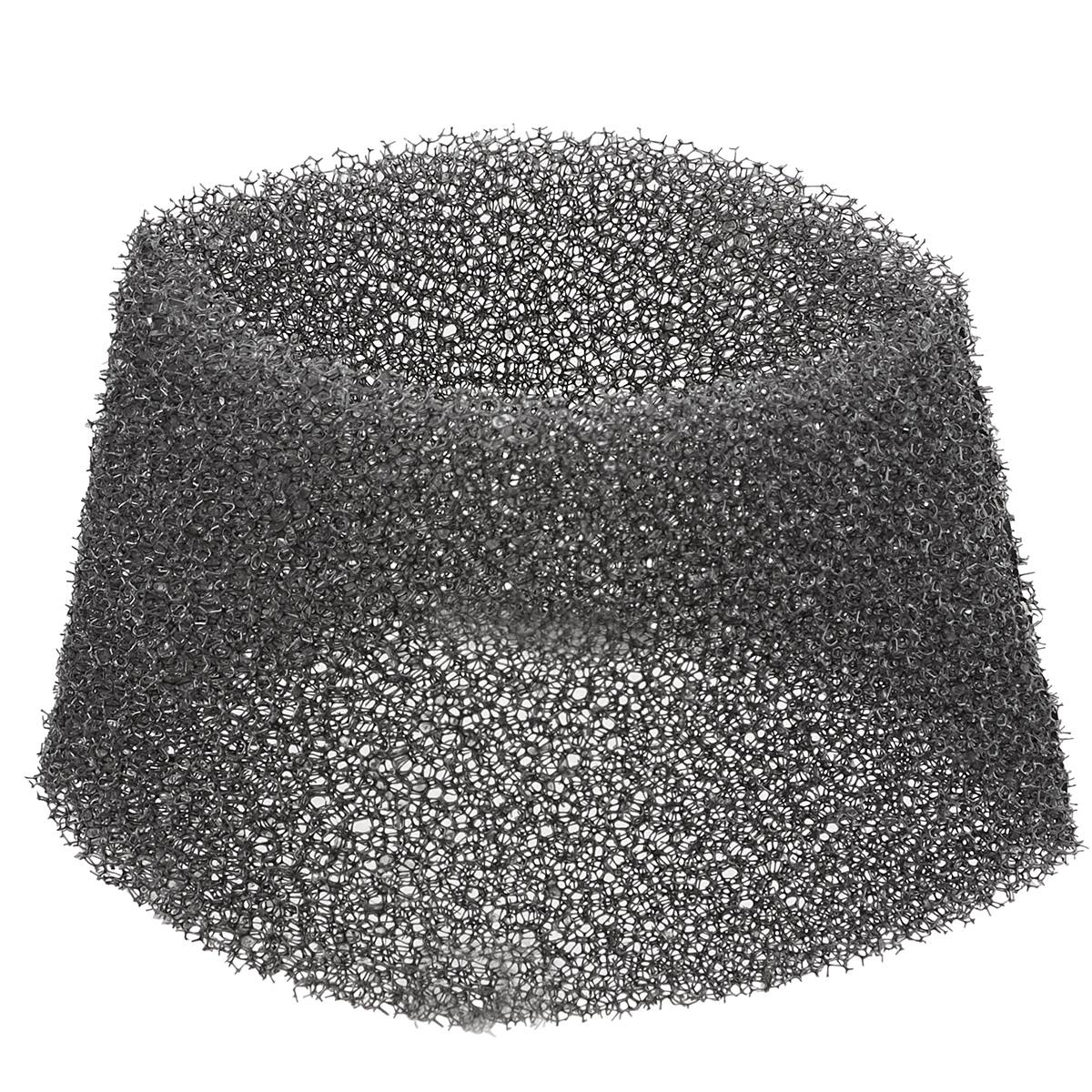

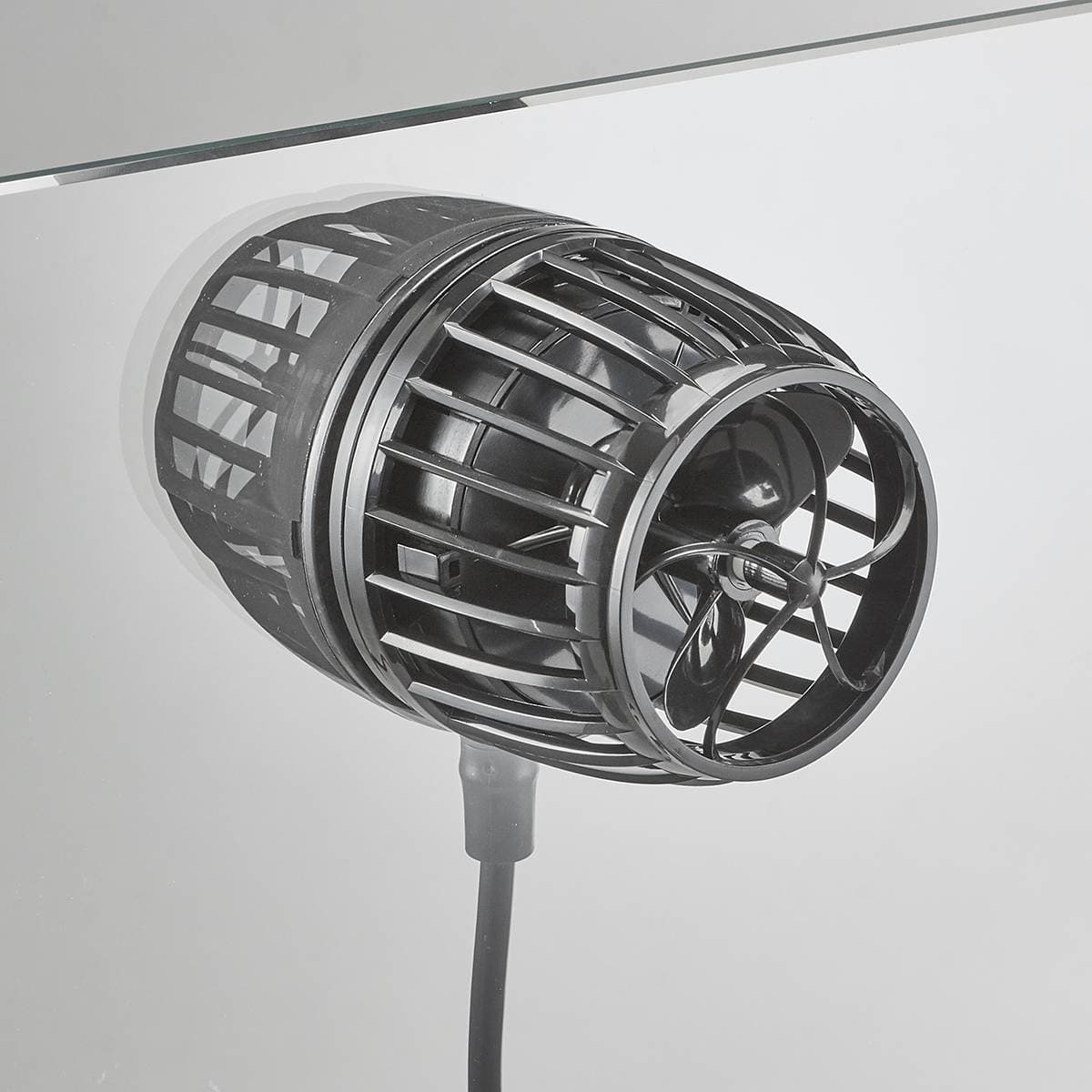

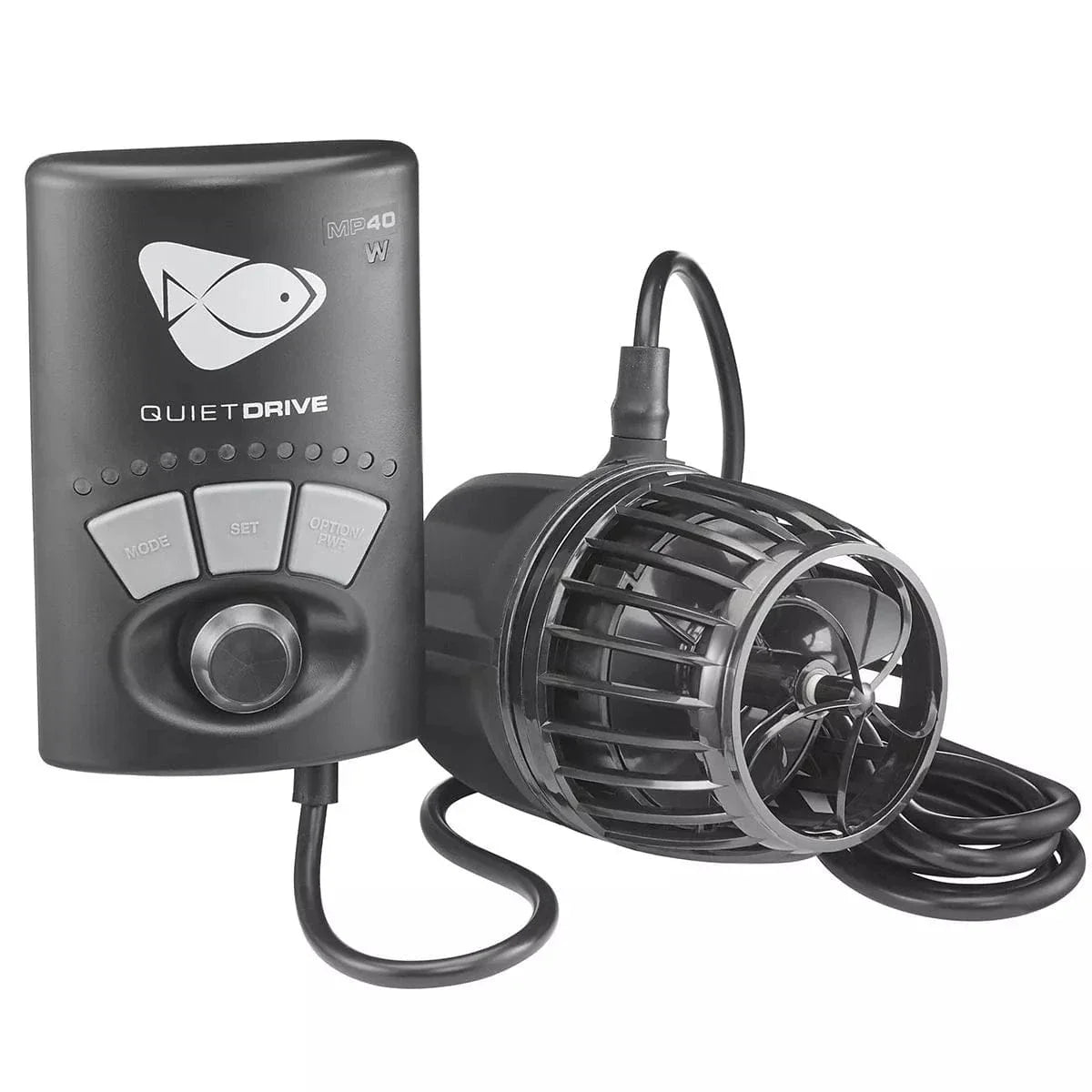

Routine service centers on the in-tank wet side and included foam guard. The wet side can be removed for cleaning without moving the external driver, while the foam guard can be removed and rinsed as needed. The guard fits over the wet-side intake to help keep larger particles and small livestock away from the propeller, but it also becomes part of the maintenance path and should be observed for accumulated material. The package includes one Mobius Ready MP40 QuietDrive pump, one QuietDrive driver/controller, one spacer, one foam guard, one mounting hardware kit, and one power supply. The stated electrical specification is 9 to 37 watts of pump power consumption; input and output voltage details are not provided in the source record.
