VorTech MP10mQD Expert Buying Guide

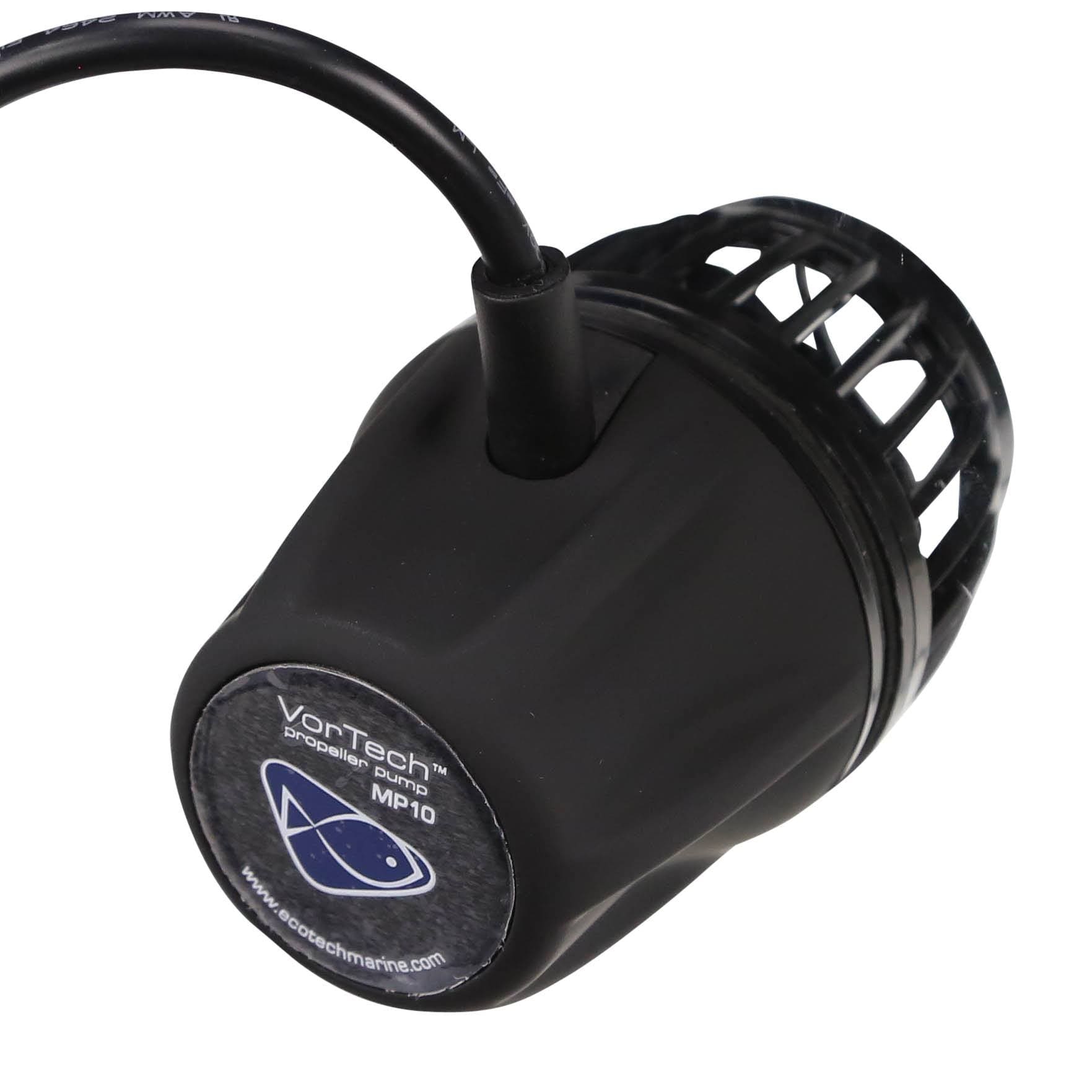

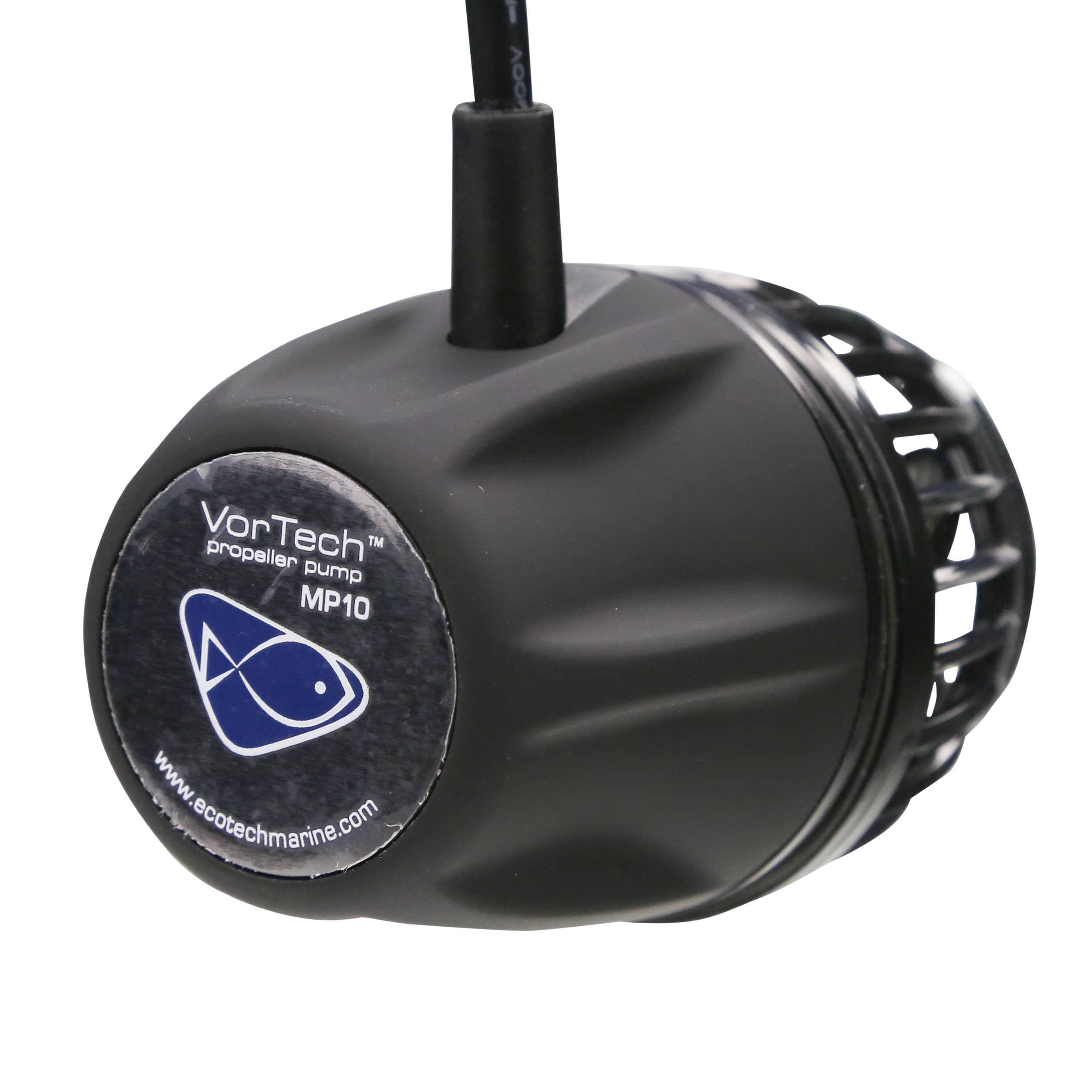

The EcoTech Marine VorTech MP10mQD is the smaller model in the Mobius-ready QuietDrive range, with an adjustable maximum flow rate of 2,500+ GPH and a listed aquarium range of 2.5–50+ gallons. That range makes it particularly relevant to nano reefs and other smaller aquariums where a conventional internal powerhead can occupy noticeable display space. The MP10 uses a low-profile internal wet side magnetically coupled to an external motor and controller. All electrical components remain outside the aquarium, so there is no electrical motor or power cord running from the pump inside the display. Power consumption varies from 8 to 19 watts according to operating speed.

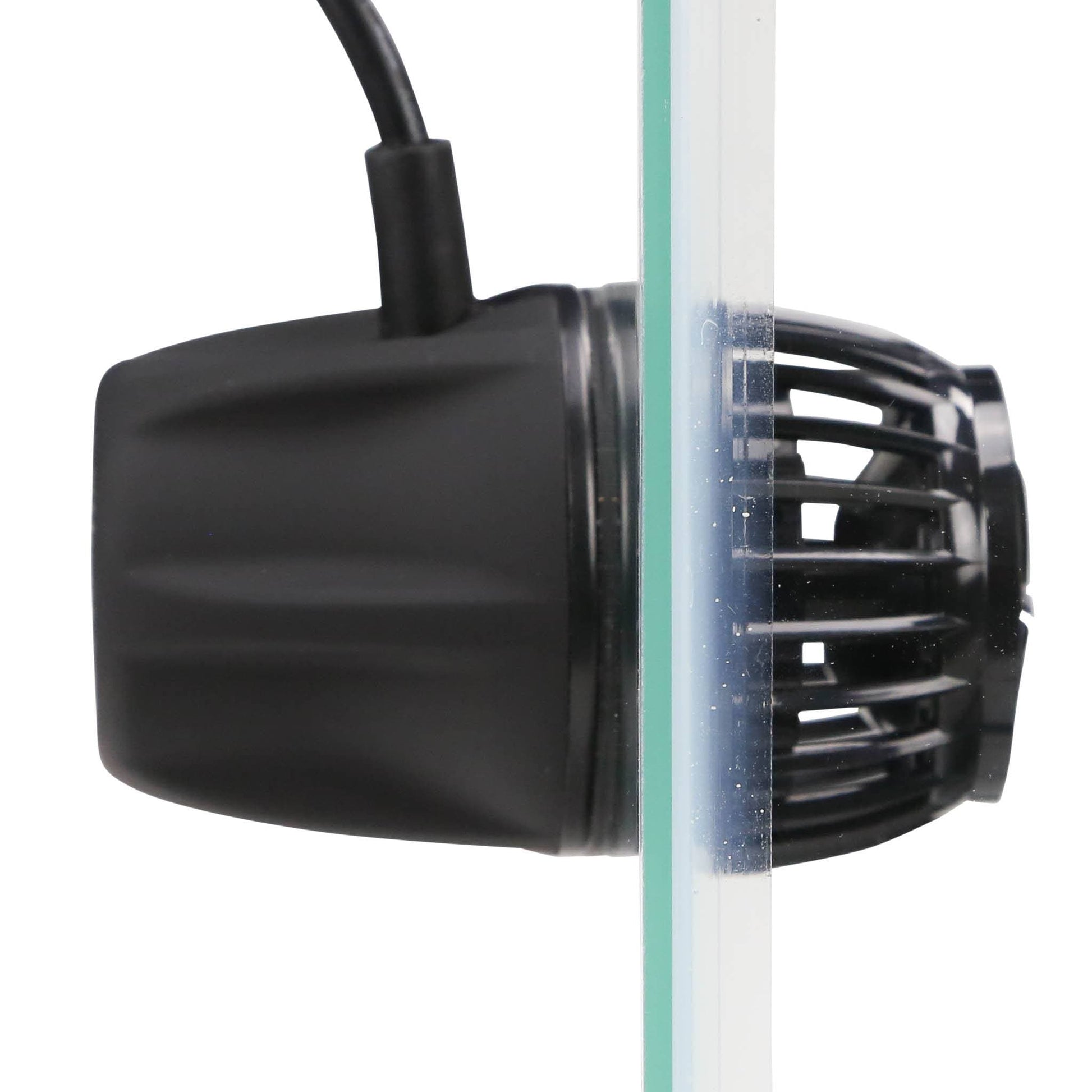

The external-drive arrangement is a central reason to choose the MP10mQD, but it places a firm limit on aquarium-wall compatibility. The maximum supported glass thickness is 0.375 inch, or 9.5 mm. Confirm the actual thickness of the intended mounting panel before purchase rather than relying only on aquarium volume. A small aquarium can still have a panel, brace, or reinforced section that is unsuitable for the magnetic coupling. The included spacer and mounting hardware are provided for installation, but they do not extend the stated thickness limit. The mounting location also needs enough clearance outside the aquarium for the external driver and its hardware.

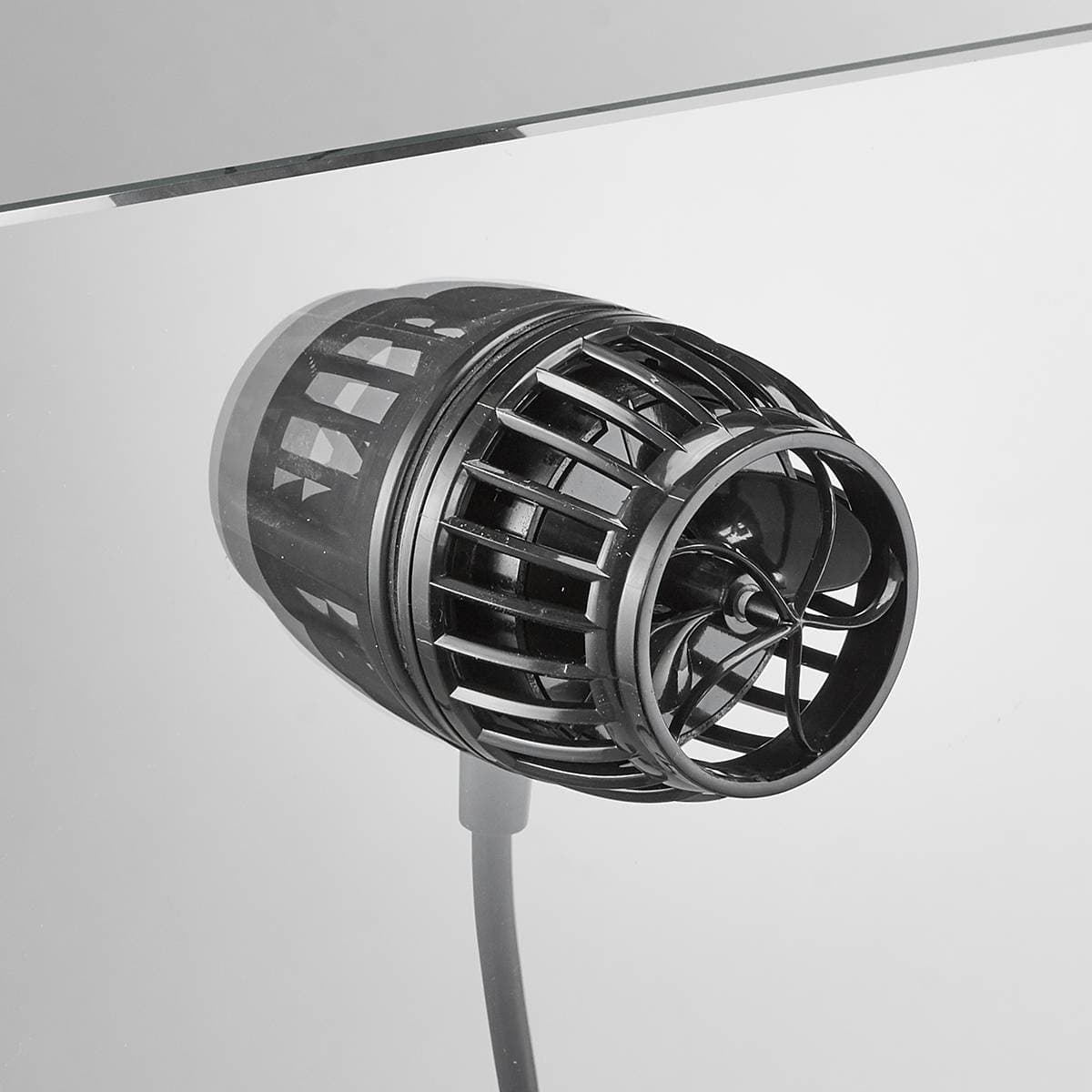

Inside the aquarium, the wet side produces a broad flow pattern intended to avoid narrow flow hot spots. EcoTech describes the design as creating three-dimensional flow conditions and gyres rather than concentrating all output into a tight jet. This can be useful in compact reefs, where livestock, rockwork, and the sand bed are often close to the pump. Even broad flow can move sand or subject nearby coral tissue to excessive movement when output is set too high, so the 2,500+ GPH figure should be treated as adjustable capacity rather than a setting every nano aquarium should use continuously.

Placement should begin with the aquarium’s rock structure, coral positions, sand bed, and overflow arrangement rather than a universal mounting height. Install the wet side on compatible glass where its broad output has an open path across the display and is not immediately obstructed by rockwork. Avoid treating the highest available output as the starting point in a small tank. Begin at a conservative controller setting, observe movement around corals and across the sand, and then adjust placement, mode, or output. The source does not prescribe a single side, height, or distance from livestock, so final positioning must be tuned to the individual aquascape.

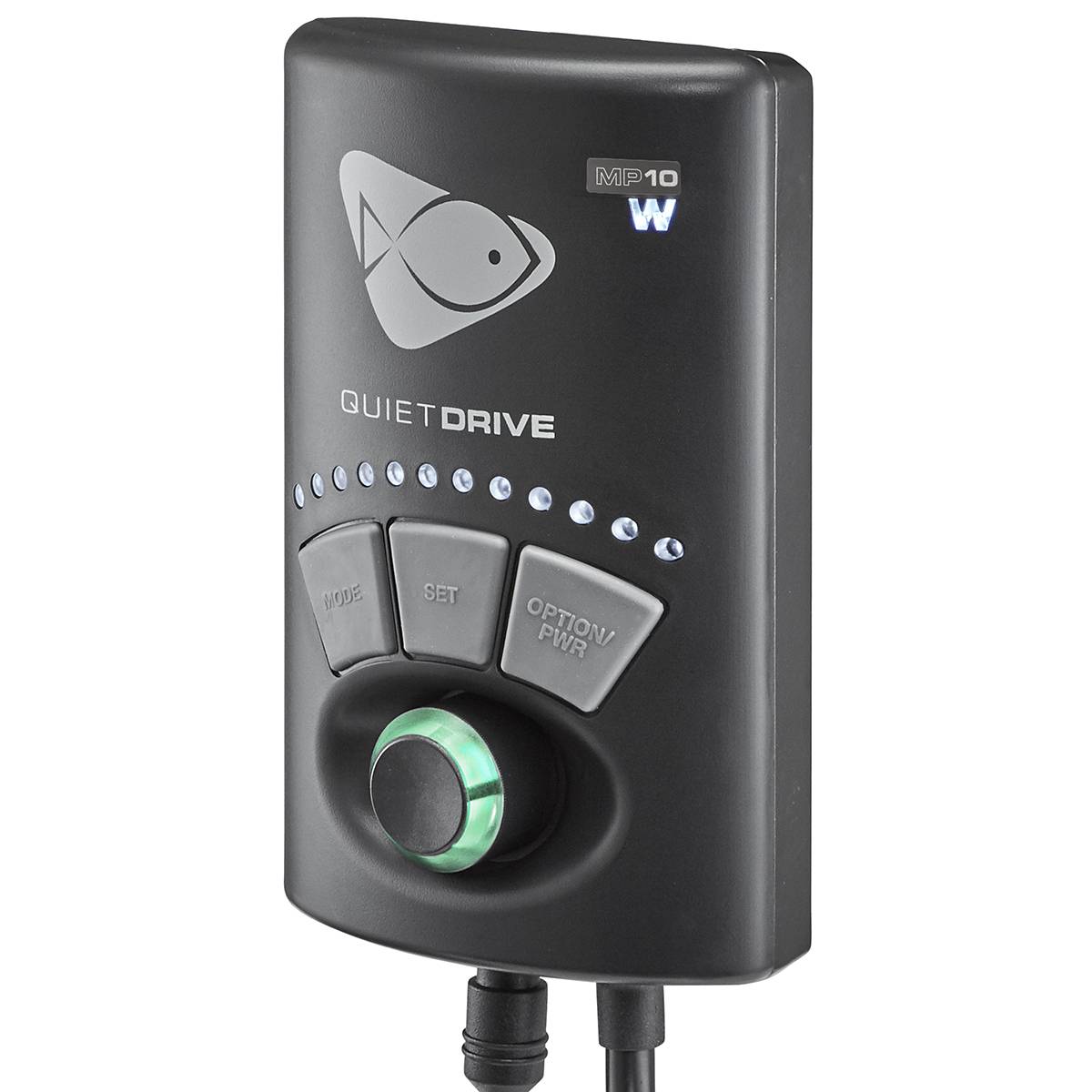

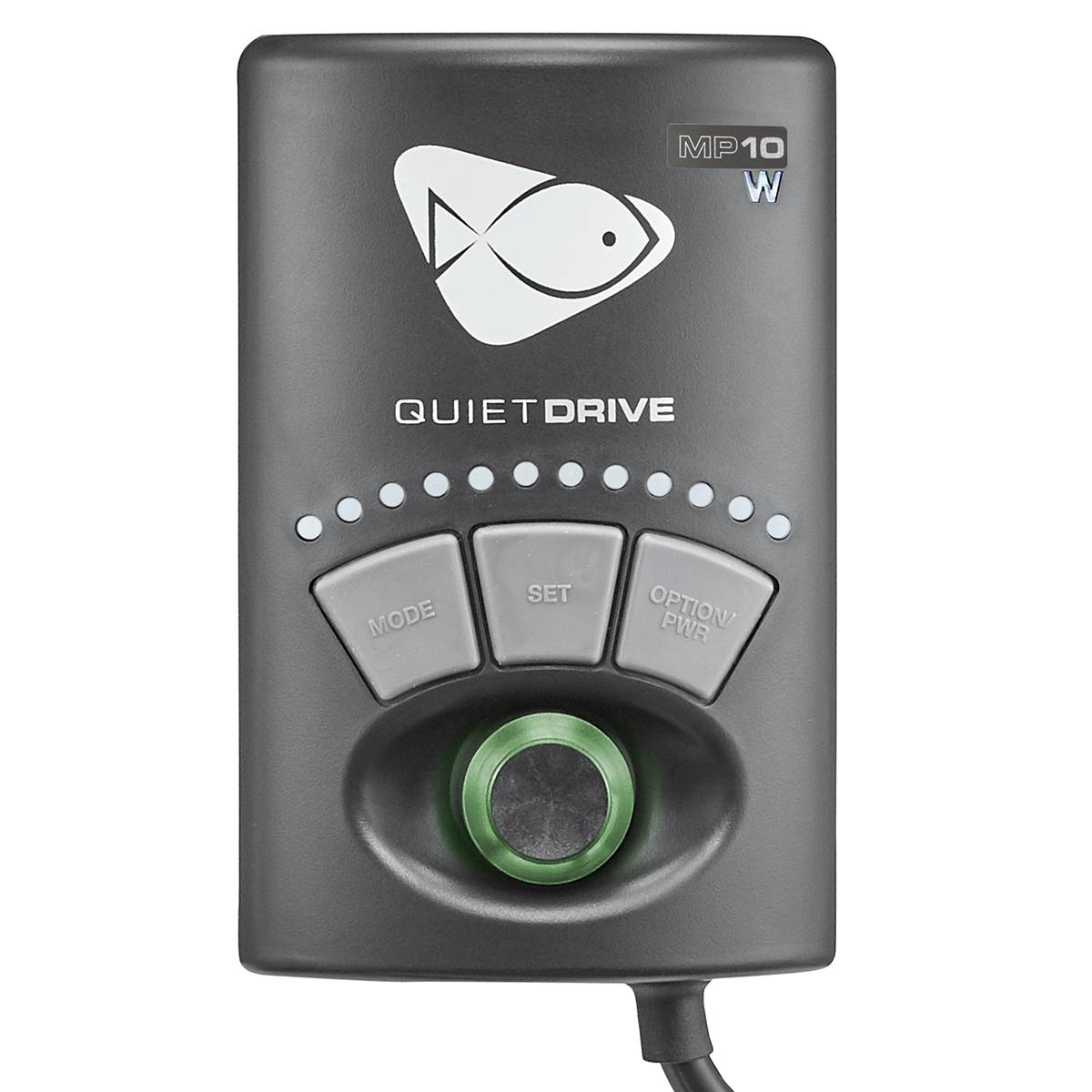

The MP10mQD offers 12 flow modes through its included QuietDrive driver/controller and Mobius programming. This range allows the pump to be configured for different circulation objectives instead of operating only at one fixed speed. Feed Mode turns linked wireless EcoTech pumps down to an idle speed, helping keep food from being pushed immediately into rockwork or filtration. Night Mode can be enabled or disabled and assigned custom hours for calmer scheduled operation. These functions are especially practical on smaller reefs, where a single circulation pump may have a strong influence over food movement and nighttime water motion throughout the display.

Wave Auto Tune Mode is intended to create a standing wave that can help sweep detritus and other particles from the sand bed and rockwork. EcoTech suggests pairing two wireless pumps to obtain the full effect of this mode. In a nano or smaller reef, standing-wave behavior should be approached carefully because aquarium dimensions, water level, aquascape, and sand movement will influence the result. Use the adjustable controller rather than assuming the strongest wave is appropriate. The availability of the mode provides tuning flexibility, but the supplied information does not promise that every aquarium can support the same wave setting or achieve the same circulation pattern.

Mobius support is built in, so no additional equipment is required to obtain the listed wireless programming functionality. The MP10mQD can connect directly to a compatible iOS or Android device for access and programming through the Mobius app. This is useful when the external driver is mounted in a cabinet or another location where repeated manual adjustments are inconvenient. App control does not change the pump’s physical limits: the aquarium panel must still be no thicker than 0.375 inch, and output must still be selected according to livestock and layout. The included driver/controller also provides direct hardware control, including access to Feed Mode at the press of a button.

The pump is also identified as compatible with MXM. Neptune Systems, EcoTech Marine, and AquaIllumination developed MXM to place supported EcoTech and AI pumps and lights under Apex and Apex Fusion control. For an aquarist already using that ecosystem, this can consolidate control rather than requiring regular switching between separate applications. Mobius remains the direct wireless option listed for iOS and Android. The source does not state that an MXM module is included with the MP10mQD, so MXM compatibility should not be interpreted as meaning that every piece of Apex integration hardware comes in the pump package.

Choosing between the MP10mQD and MP40mQD should start with both glass thickness and circulation scale. The MP10 is listed for 2.5–50+ gallons, produces 2,500+ GPH, supports glass up to 0.375 inch, and consumes 8–19 watts. The MP40 is listed for 50–500+ gallons, produces 5,000+ GPH, supports glass up to 0.75 inch, and consumes 9–37 watts. The MP40 therefore offers twice the listed maximum flow and accommodates glass twice as thick. For a nano reef on compatible thin glass, the MP10 provides the more appropriately scaled range; for thicker panels or substantially larger aquariums, the MP40 specifications may be the relevant starting point.

Volume alone does not determine which model fits. A tank near the overlap around 50 gallons still needs to be evaluated for panel thickness, dimensions, aquascape, livestock, and desired circulation. The MP10 cannot be selected for a 0.5-inch or 0.75-inch panel simply because the aquarium volume falls within its listed range; its stated maximum remains 0.375 inch. Conversely, the MP40’s greater capacity does not establish that it is automatically appropriate for every smaller aquarium. Compare the model specifications with the intended mounting surface and consider how much of each pump’s adjustable output range is likely to be useful in the actual display.

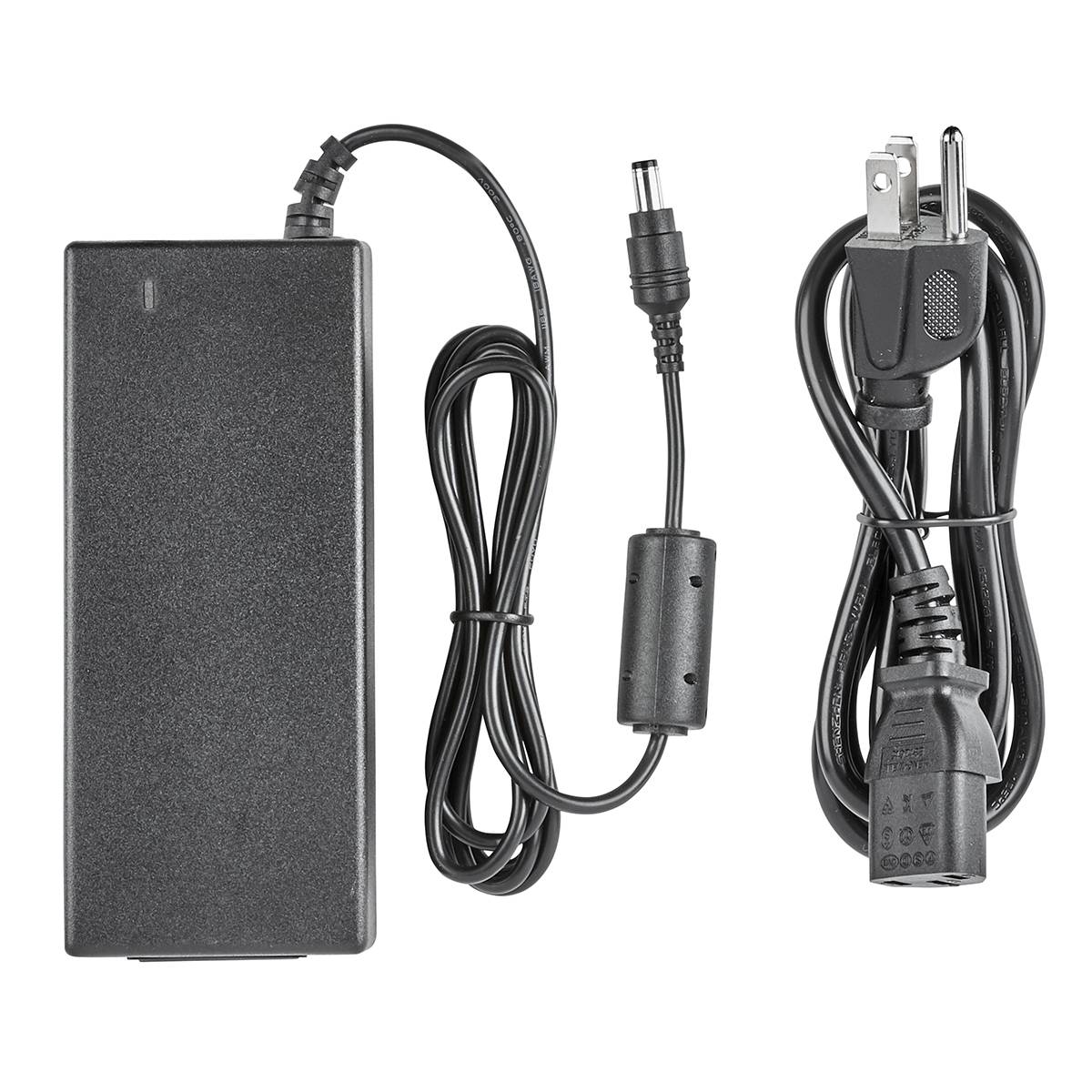

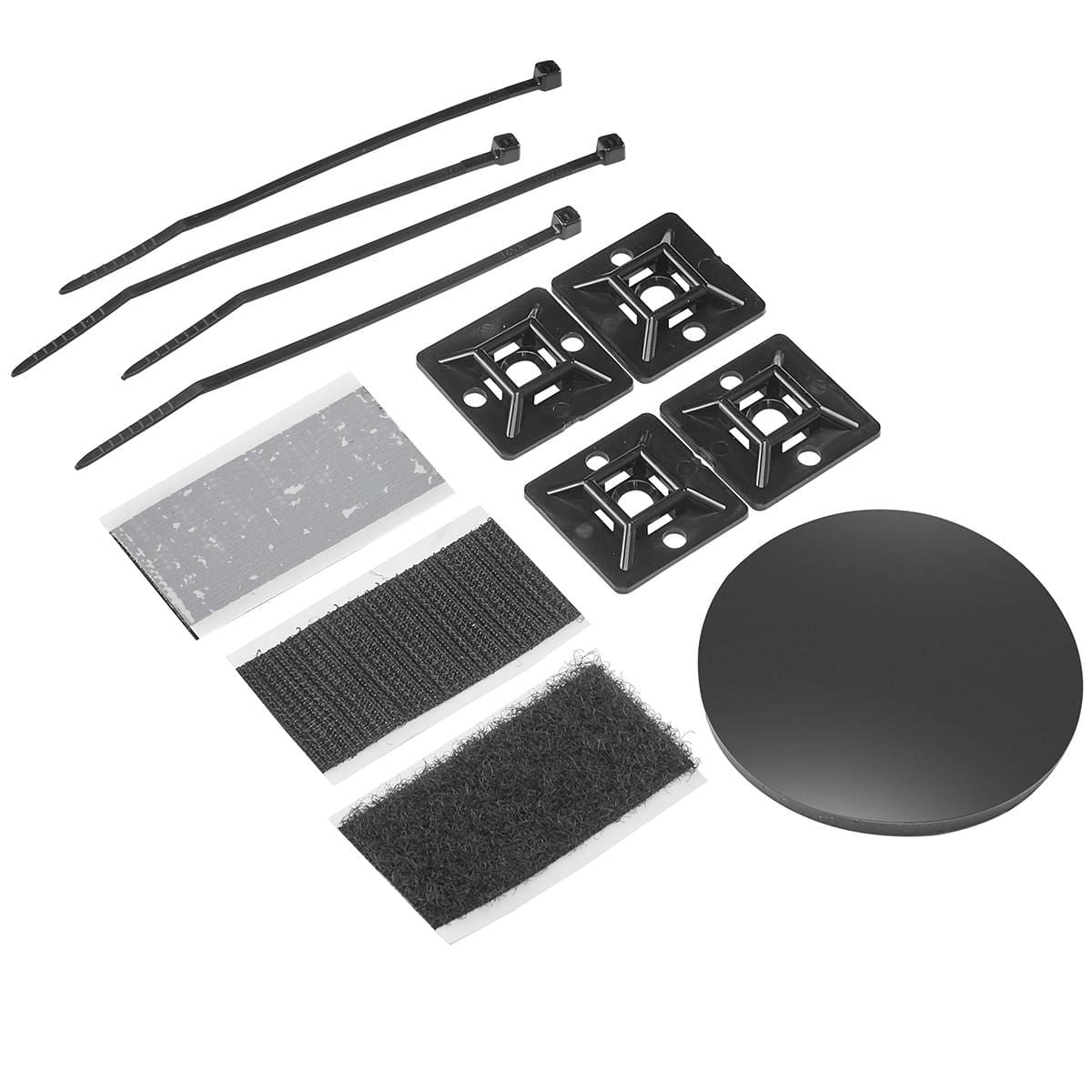

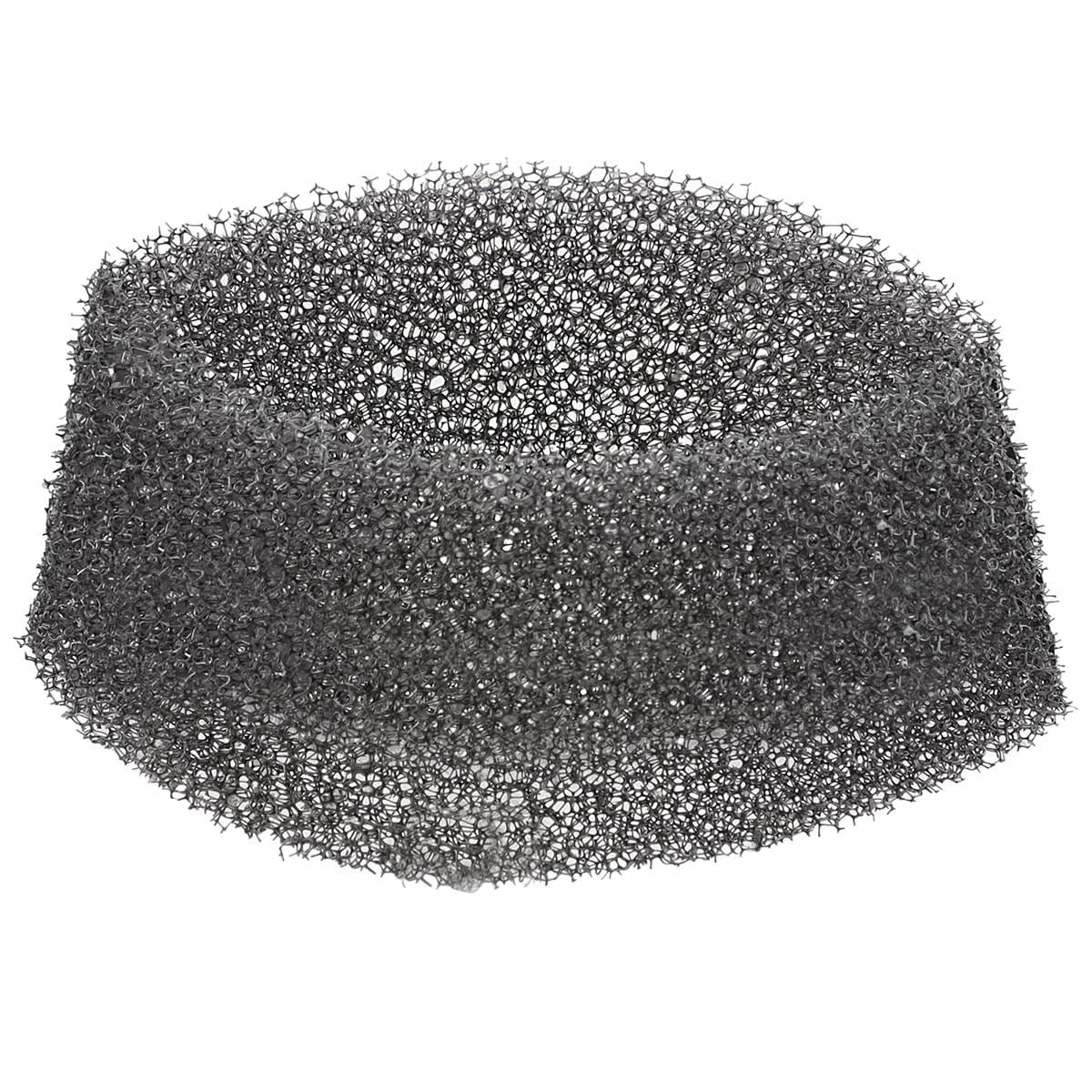

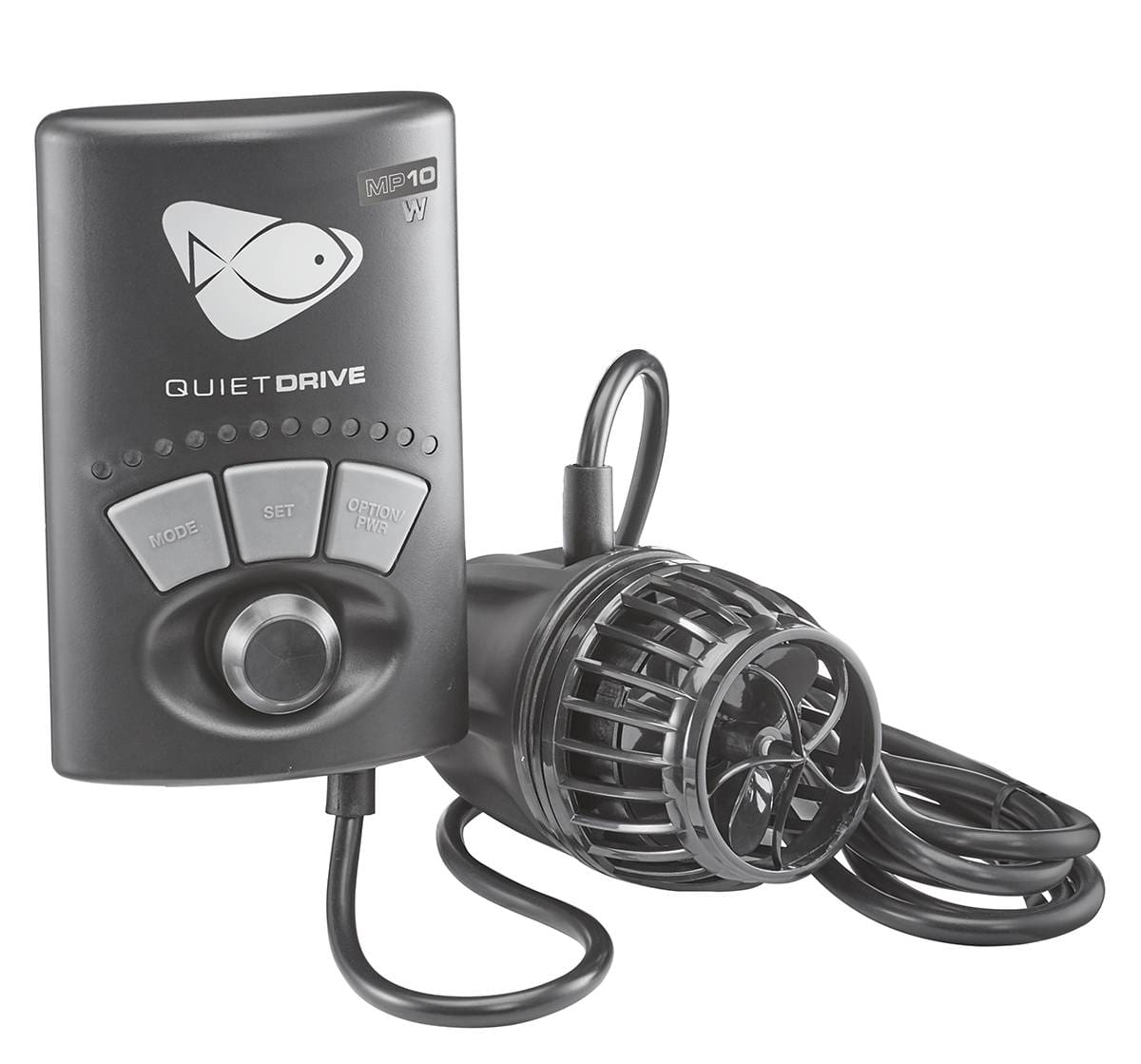

The box includes one VorTech MP10 Mobius Ready QuietDrive pump, one QuietDrive driver/controller, one spacer, one foam guard, one mounting hardware kit, and one power supply. This provides the listed core components needed to mount and operate the pump. The foam guard fits over the wet-side intake and is provided to help prevent small animals from entering, making it relevant when the aquarium contains small fish, shrimp, or other invertebrates. Because it covers the intake, include the guard in routine visual checks. The supplied record does not prescribe a cleaning schedule, replacement interval, or detailed wet-side service procedure, so those details should be taken from EcoTech’s operating documentation.

The MP10mQD is ultimately differentiated by its combination of nano-to-50+ gallon sizing, broad adjustable flow, thin-glass limitation, and external electrical design. It is most compelling when the installation panel is 0.375 inch or thinner and the aquarist wants to minimize the equipment and cord presence inside the display. Its 12 modes, Mobius programming, Feed Mode, Night Mode, Wave Auto Tune, and optional ecosystem integration provide substantial control, but successful use still depends on conservative initial settings and placement suited to the individual reef. Confirm glass thickness first, preserve an unobstructed flow path, and tune output according to observed coral and sand-bed response rather than relying on maximum flow alone.
