Vectra M2 Expert Buying Guide

The EcoTech Marine Vectra M2 is a controllable DC pump intended for return-pump and closed-loop applications. Its published maximum flow is 2,000 GPH, while its maximum head height is 21.5 feet. Those two limits make it relevant when planning medium and larger reef systems, especially layouts with a sump below the display, a moderate plumbing run, or several fittings between the pump and return outlets. They should not be treated as simultaneous operating figures, however. Actual delivered flow depends on the completed plumbing system, including vertical rise, pipe diameter, fittings, valves, outlets, and equipment placed in line. EcoTech does not provide a flow curve in the supplied information, so final output at a particular head pressure cannot be calculated from these specifications alone.

For return-pump selection, begin with the flow required through the sump rather than choosing solely from display volume or the 2,000 GPH headline. Measure the vertical distance from the operating water level in the sump to the return discharge, then account for the resistance created by the rest of the plumbing. A straight, generously sized run will impose less resistance than a route containing numerous elbows, restrictive valves, branches, or in-line equipment. The M2’s adjustable DC operation lets the aquarist reduce pump speed at the controller instead of relying on a choke valve as the primary means of flow adjustment. That is useful when the planned operating point leaves some capacity for plumbing losses but does not require the pump to run at maximum output continuously.

The distinction between maximum flow and maximum head is particularly important with the M2. The 2,000 GPH specification represents the pump’s maximum flow rating, while 21.5 feet is the maximum head-height rating. The latter is not a promise that useful return flow will remain available at that exact limit, and it is not a recommended design target. Head pressure rises as water is lifted and routed through restrictive plumbing. For a moderate return run, the practical question is therefore how much flow remains after all system resistance is included. Because the supplied record does not include a pump curve, aquarists designing near either published maximum should obtain additional hydraulic data rather than estimating delivered flow from the maximum ratings.

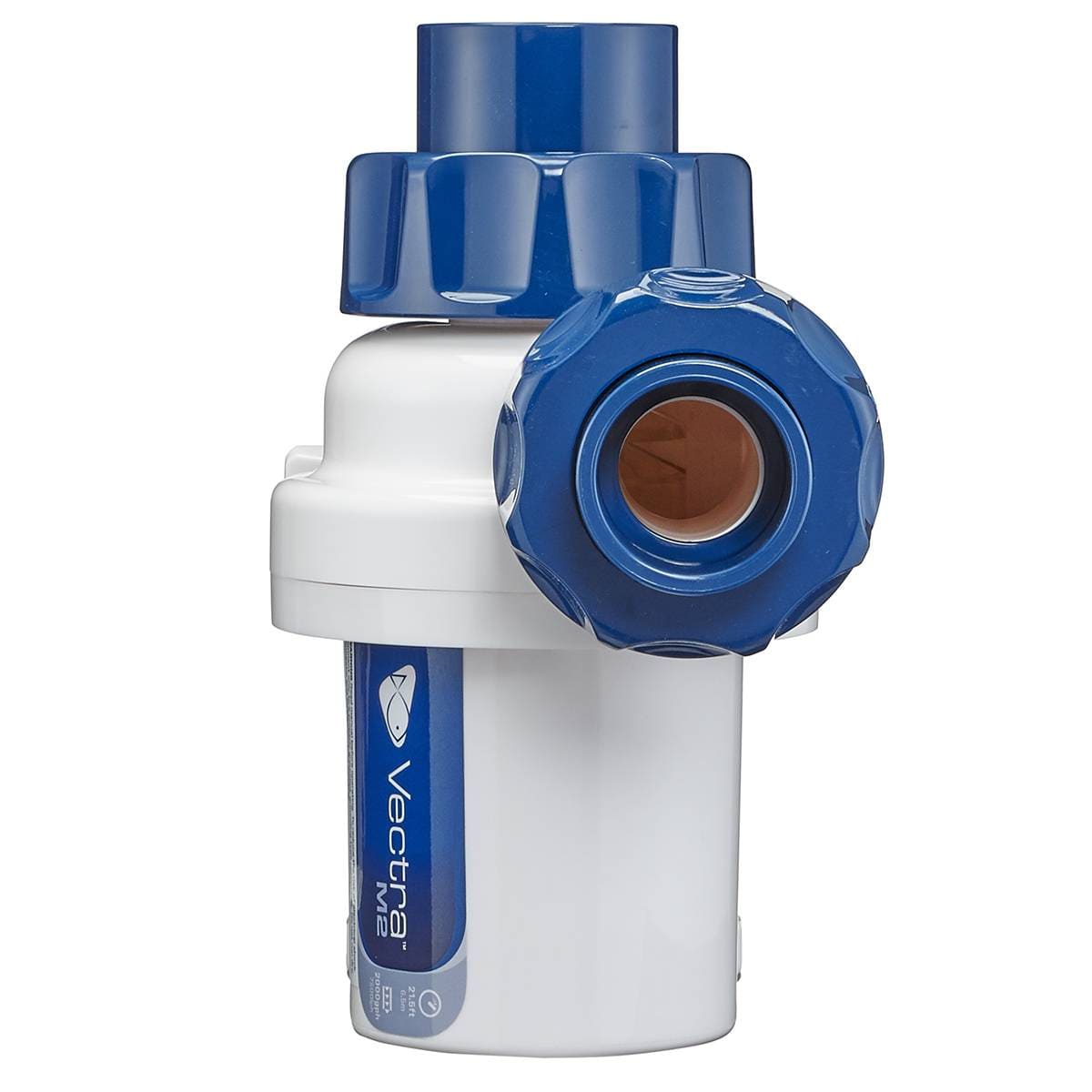

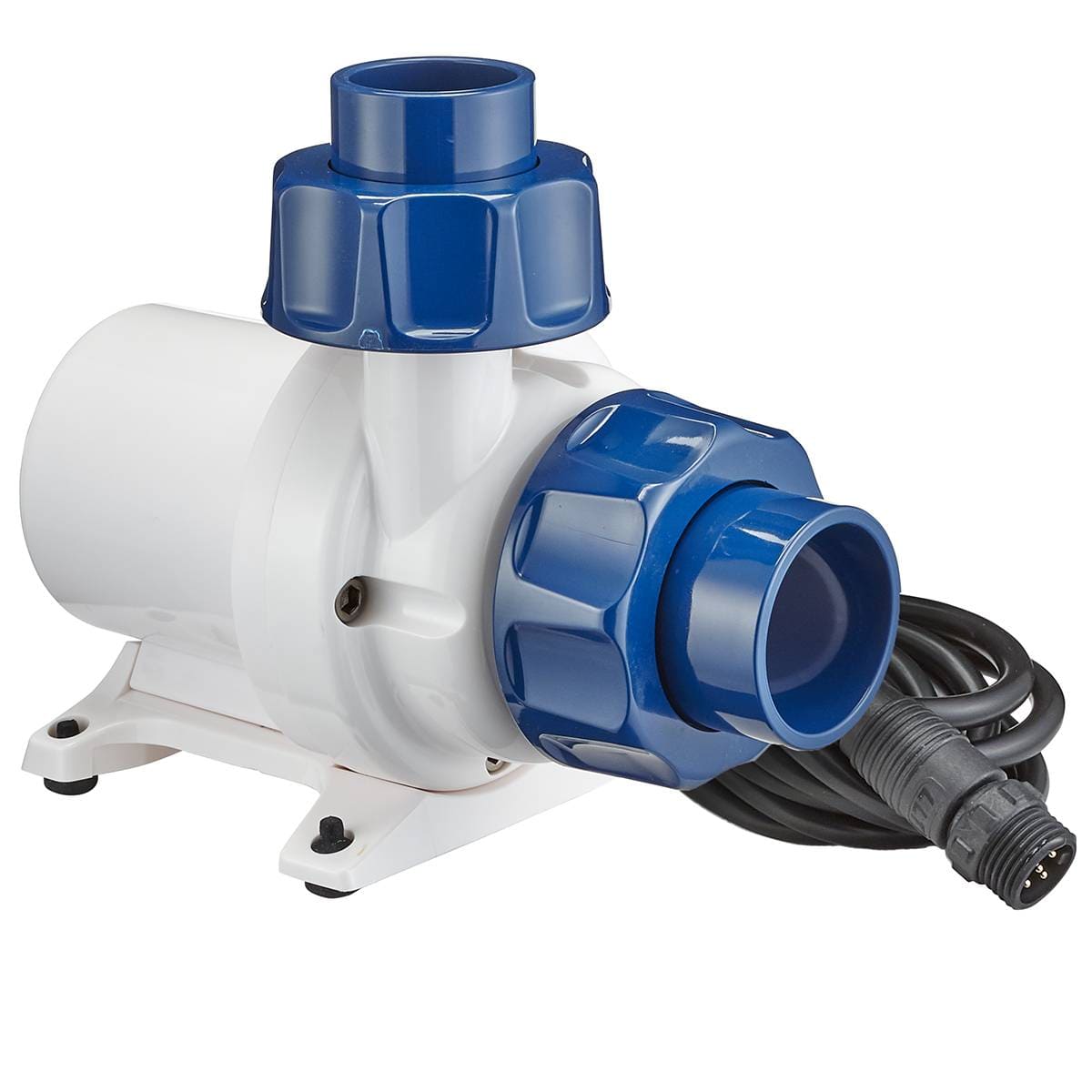

Physical integration is based around a 1.25-inch input fitting and a 1-inch output fitting, both listed as compatible with standard PVC pipe. The pump footprint is 4.5 inches long by 7.5 inches wide, so confirm the available sump chamber or external mounting area before assembling the plumbing. EcoTech includes input and output QuickCouple components to simplify connection, disassembly, cleaning, and adjustment. The volute can also be rotated to adapt the pump to the plumbing layout. These features are particularly useful when a moderate run must leave the sump in a specific direction, but the plumbing should still be supported independently instead of placing the weight or leverage of a long PVC assembly on the pump connection.

The M2 can operate submerged or inline because it uses a sealed motor and magnetic drive. Submersible installation places the pump inside the sump, while inline installation allows it to serve an external plumbing arrangement. The supplied information does not establish special installation clearances, priming procedures, or restrictions beyond those configurations, so the included instructional manual should govern the final installation. In either arrangement, preserve access to the QuickCouple fittings and leave enough room to remove the pump for service. A tightly packed sump cabinet may technically accommodate the listed footprint but still make maintenance difficult if unions, valves, or nearby equipment prevent the pump from being withdrawn without dismantling the return line.

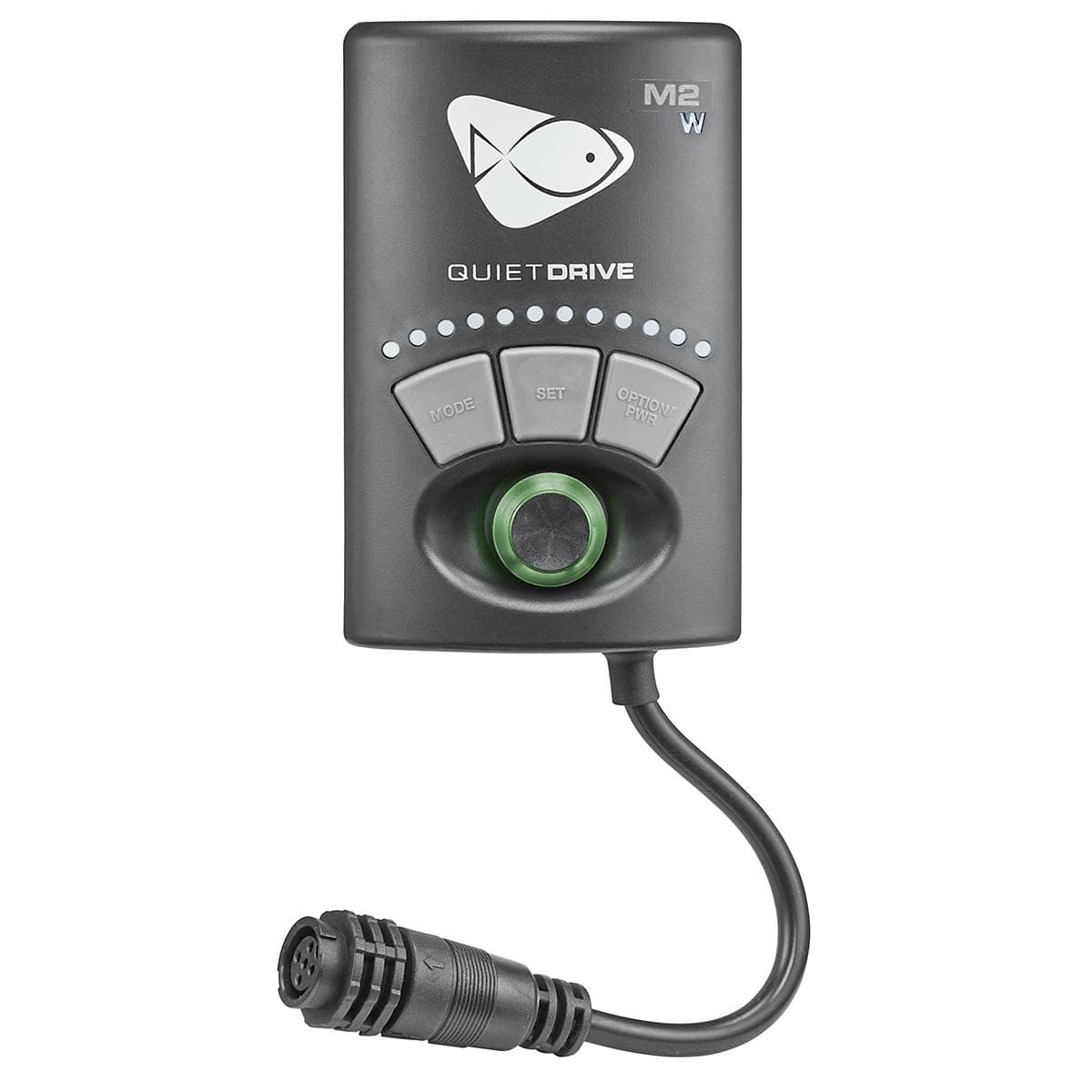

Return Pump mode is the appropriate configuration when the M2 moves water from a sump back to the aquarium. In this mode, the driver provides calibration and Speed Lock. Calibration can be used as part of setting the pump for the return system, while Speed Lock helps prevent unintended changes after the operating level has been selected. Feed Mode is also available through the Vectra driver. For a return application, establish a stable operating water level and tune the pump in relation to the overflow and drain arrangement rather than focusing only on the controller’s speed setting. The source does not specify a recommended turnover rate or aquarium-size range, so suitability should be based on the system’s required delivered flow and calculated plumbing resistance.

Closed Loop mode changes the M2’s role. Instead of moving water between a sump and display, the pump can be installed as a closed-loop flow pump and provide circulation through a dedicated intake and return circuit. This configuration enables random and pulsing EcoSmart modes associated with EcoTech’s VorTech pumps. That makes the M2 operationally different in a closed loop than in a conventional return line, where stable transport between the aquarium and filtration system is generally the central task. Before choosing this approach, make sure the plumbing is designed specifically for a closed loop. The supplied product information confirms inline or submersible operation but does not provide intake-screen requirements, bulkhead specifications, or closed-loop plumbing diagrams.

A manifold can add substantial resistance because every branch, valve, fitting, and connected device changes the system’s hydraulic demand. The supplied information does not give a manifold rating or guarantee flow through any particular combination of equipment. The M2 does offer controllable flow, standard-PVC-compatible fittings, and up to 2,000 GPH maximum flow, so it can be considered during manifold planning. The decision should be based on the combined flow requirements of the display return and all active branches after head losses. Avoid assuming that the pump’s maximum flow can be divided directly among outlets. A manifold that must support several demanding branches may require more pump capacity than a simple return using the same vertical rise.

Mobius compatibility provides direct wireless programming from an iOS or Android device without additional equipment for basic app connectivity. Through the Vectra driver and Mobius platform, the aquarist can select the operating configuration and access applicable pump functions. The M2 is also compatible with Neptune Systems Apex control through the MXM module, allowing supported EcoTech and AquaIllumination equipment to be managed through Apex and Apex Fusion. MXM is a separate control path rather than a listed component in the M2 package. For a system built around automation, decide whether Mobius control alone is sufficient or whether centralized Apex integration is worth adding before locating the driver and completing cable management.

EcoTech Battery Backup compatibility gives the M2 an available option for operation during a power interruption. The source emphasizes the importance of maintaining aquarium flow when normal power is lost, but it does not provide a specific M2 runtime. Runtime estimates vary with battery life, pump mode, and other factors. Battery planning should therefore avoid relying on an assumed number of hours. Determine which circulation function is most important during an outage and configure the system accordingly using EcoTech’s applicable instructions. Battery compatibility does not remove the need to inspect connections, monitor battery condition, or maintain a broader outage plan for other essential aquarium equipment that is not powered through the pump backup.

Routine service is facilitated by the included QuickCouple fittings and rotatable volute, which allow the pump to be disconnected without cutting apart standard PVC plumbing. EcoTech describes the M2 as designed for easy maintenance, but the supplied record does not prescribe a fixed cleaning interval. An appropriate schedule depends on the aquarium and installation. Inspect output trends, startup behavior, visible buildup, and any change in operating noise, then clean before deposits materially obstruct the pump or fittings. Systems prone to calcium carbonate accumulation, detritus, or biological growth may require more frequent attention. During planning, preserve dry access to the separately mounted driver and power supply while ensuring the pump itself can be isolated and removed safely.

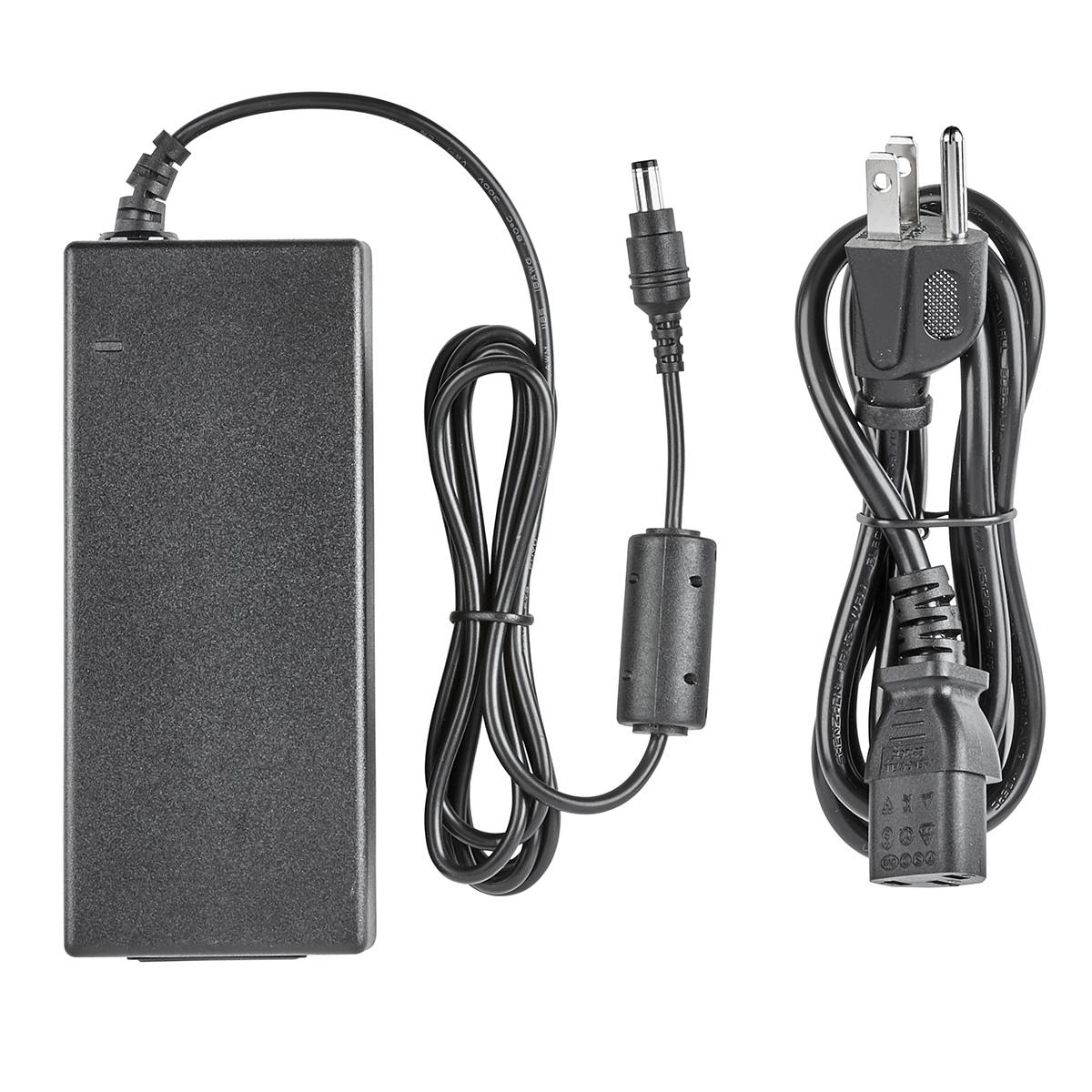

Choosing between the Vectra M2 and the S2 or L2 requires model-specific specifications that are not included in this source record. The confirmed M2 reference points are 2,000 GPH maximum flow, 21.5 feet maximum head height, a 4.5-by-7.5-inch footprint, 1.25-inch input, 1-inch output, and a 96W power supply. Compare those values with the published flow curves, fitting sizes, footprints, and power requirements for the S2 and L2 before selecting among them. The M2 is the appropriate comparison baseline when a system needs more than a minimal short-run return but should not be chosen merely because it sits between two model names. Size the pump around delivered flow, plumbing resistance, service access, and whether its primary role will be return transport or closed-loop circulation.
