Radion XR30 G6 Blue LED Light Fixture - EcoTech Marine

Why Choose the Radion XR30 G6 Blue?

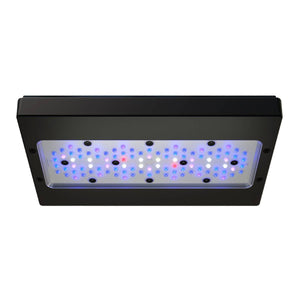

• Fluorescence-focused spectrum: a 100-LED array weighted toward blue, with 395nm UV diodes added for heightened fluorescence
• HEI2 optics: a 126.3-degree spread (up from 110.5 degrees) for even PAR, broad color mixing, and reduced shadowing
• No separate controller: program it in Mobius on iOS or Android
• Apex compatible through an MXM module
• Backward compatible with G5-era Radion mounting options and accessories

Coverage and Mounting Height

EcoTech recommends mounting the fixture 8–10" above the aquarium. Plan fixture count around the recommended 36" x 30" spread rather than the 48" x 30" maximum so neighboring lights overlap; a 72" display up to 30" front to back, for example, geometrically corresponds to two 36" coverage sections; EcoTech does not give tank-by-tank fixture counts. The wide beam can also reflect off the side glass to help light coral undersides. Treat these figures as planning guides, not guaranteed PAR.

Blue-Weighted LED Mix

Mobius and Apex Control

Mobius handles wireless setup, scheduling, spectrum adjustment, and moonlight and weather simulation. Start from EcoTech's CoralLab AB+ program (including the popular SPS AB+) or tune the channels from deep actinic to a crisper white-blue look. Apex users can add an MXM module to control the light through Apex and Apex Fusion.

XR30 G6 Blue vs. XR30 G6 Pro

Choose the Blue when fluorescence and deep blue intensity are the priority. Choose the Pro for a balanced LED mix with spectra described as similar to metal halide, used in public aquariums and coral spawning labs. The difference is spectral emphasis, not a stated difference in tank-size rating.

Mounting Options (Sold Separately)

• RMS Mounting Arm: mounts one fixture to the tank in 90-degree increments
• RMS Track System: slides multiple Radions along rails up to 8' long, suspended with a hanging kit or tank-mounted with the RMS Multi-Arm Kit
• Hanging Kit: for suspended installations

Specifications

In the box: XR30 G6 Blue fixture, power supply, power adapter cable, microfiber cloth, eyelet mounts, and quick-start guide.
