Radion XR15 G6 Pro Expert Buying Guide

The EcoTech Marine Radion XR15 G6 Pro is the compact member of the G6 Pro platform, built around a 7-by-7-inch fixture body and a balanced LED mix. Its most natural roles are lighting a compact reef, dividing a longer aquarium into repeatable lighting zones, or joining XR15 and XR30 fixtures on a shared multi-light rail. The published recommended spread is 24 by 24 inches, which makes the XR15 particularly useful when fixture placement needs to follow individual rock structures rather than one broad central light source. Its 105-watt maximum variable usage, 50-LED array, Mobius programming, and multiple mounting options provide the core information needed to plan a system without treating fixture count as a substitute for aquarium-specific lighting assessment.

Physically, the XR15 G6 Pro measures 7 inches long, 7 inches wide, and 1.5 inches high, with a listed weight of 3.5 pounds. The supplied cable is 13 feet long, and the power input is 100–240VAC, 4.0A, 50/60Hz. Those dimensions are worth checking against the aquarium rim, canopy, mounting hardware, and intended cable route before installation. EcoTech recommends positioning the fixture 8 to 10 inches above the aquarium. Because the light has a wide beam, mounting position should be planned around the complete aquascape and neighboring fixtures, not simply the aquarium’s geometric center. The compact housing also makes it practical to place several XR15 units along a multi-light track when a single point of light would not match the reef structure.

The defining G6 optical change is the HEI2 system. EcoTech altered the primary LED lens and integrated it with the geometry of the HEI secondary lens, increasing the stated spread from 110.5 degrees to 126.3 degrees. The wider beam is intended to improve color mixing, distribute light more evenly, and reduce shadows. EcoTech also describes light reflecting from the aquarium’s side glass and returning to the tank, helping reach coral undersides. This should not be interpreted as a universal fixture-count formula, because aquarium dimensions, glass, aquascape, coral placement, and mounting arrangement still differ. It does explain why the XR15 can be considered as a coverage module rather than only as a concentrated light centered over one coral group.

EcoTech publishes a recommended light spread of 24 by 24 inches and a maximum spread of 30 by 30 inches for the XR15 G6 Pro. For planning purposes, the 24-inch square is the more appropriate starting point because it is the manufacturer’s recommended figure. The 30-inch square is the listed maximum, not a promise of identical intensity or suitability for every coral across that entire footprint. No PAR measurements, depth-specific readings, or universal SPS coverage ratings are supplied in the source record. Experienced aquarists should therefore separate geometric spread from coral-lighting requirements. On compact reefs, one fixture may align well with the recommended footprint. On longer tanks or branching SPS layouts, multiple overlapping XR15 zones may offer more deliberate placement and shadow management.

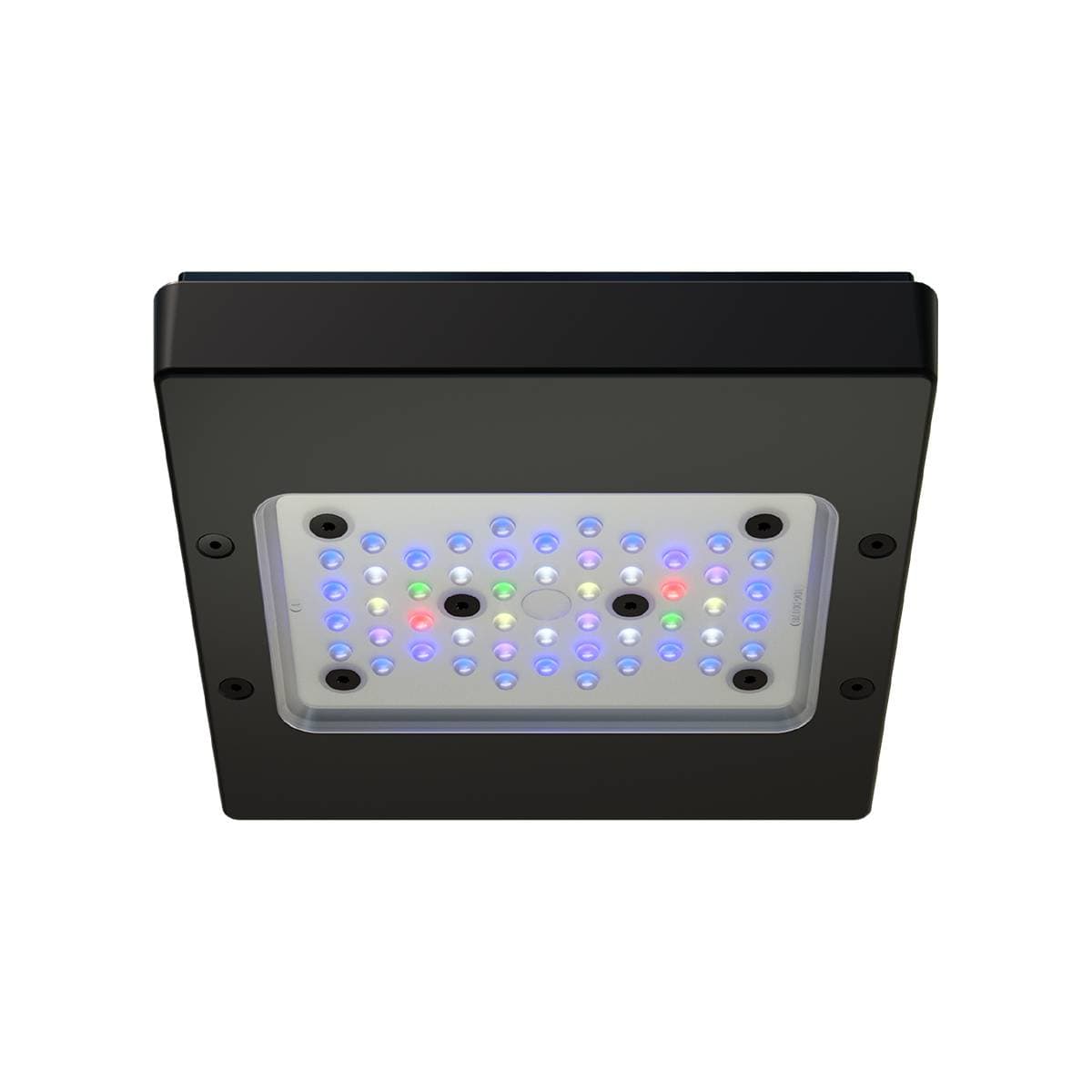

The Pro configuration is differentiated by its balanced LED mix. Its 50 diodes comprise eight cool white, sixteen royal blue, eight blue, four 430nm violet, two 395nm UV, one 405nm UV, two 415nm UV, four warm white, two red, and three green diodes. EcoTech describes the resulting Pro spectrum as similar in character to metal halide output and notes its use in public aquariums, aquaculture facilities, and coral spawning laboratories. The combination is intended for aquarists who want substantial blue and violet content without committing the fixture’s identity to the more blue-forward presentation of the G6 Blue. The broad mix also leaves room to adjust the visual balance through the programmable channels rather than choosing a permanently narrow aesthetic at purchase.

The XR15 G6 Blue and XR15 G6 Pro should be chosen by spectral preference, not by assuming that one name automatically indicates a higher tier. EcoTech describes the Blue as becoming even bluer in G6, with a diode mix that can be tuned between an actinic appearance and a crisper look. The Pro uses the balanced mix and metal-halide-like spectral character described above. Both belong to the G6 platform, but the page’s decision point is straightforward: choose the Pro when a balanced presentation and broader color mixture are priorities; consider the Blue when a more strongly blue or actinic visual direction is the goal. The supplied record does not provide comparative PAR measurements or establish that either version universally grows coral better.

For SPS planning, the XR15 G6 Pro supports EcoTech’s established CoralLab AB+ spectrum and is fully programmable through Mobius. EcoTech identifies SPS AB+ as a lighting program developed and tested for its fixtures, while the balanced Pro diode configuration provides the colors used to reproduce that program. This makes the fixture relevant to SPS-dominant systems, but it does not create a universal prescription for intensity, fixture count, or coral depth. The source gives no numeric PAR targets or aquarium-depth rating. An SPS layout should therefore be planned around the recommended 24-by-24-inch footprint, the 8-to-10-inch mounting range, colony placement, and future shading. Large branching colonies or separated rock islands may favor several XR15 fixtures so their coverage can overlap and be repositioned.

A multi-XR15 layout offers a different planning approach from using a larger centralized fixture. Individual XR15 units can be spaced along EcoTech’s RMS Multi-Light Track System and slid back and forth to refine coverage. This can be useful over elongated reefs, multiple coral islands, or aquascapes where light should follow distinct SPS zones. The track is available in lengths up to 8 feet and accepts XR15 and XR30 fixtures together, so a system does not have to use one model exclusively. That flexibility is important when one part of an aquarium needs a compact lighting module while another calls for an XR30. The source does not provide a fixed spacing rule, so placement should be based on the published spread figures and the actual aquascape rather than equal intervals alone.

EcoTech provides several mounting paths. The RMS Single Mounting Kit is intended for one fixture and permits the light to be mounted at 90-degree increments. For multiple lights, the three-piece RMS Multi-Light Track System holds fixtures on a shared rail and allows their positions to be adjusted. RMS Multi-Light Arms attach to that rail and support the assembly from the aquarium rim. If rim mounting is unsuitable or a suspended installation is preferred, the RMS Hanging Kit supports the multi-light rail from above. The G6 remains backward compatible with the extensive mounting options and accessories offered for the previous Radion generation. The fixture package itself includes eyelet mounts, but the listed RMS single-arm, track, arm, and hanging solutions are presented as mounting options rather than included components.

Programming is handled through the free Mobius app on a current-version iOS or Android smart device. Local wireless control allows the XR15 G6 Pro to be configured without purchasing a separate controller. Available functions include lighting schedules, adjustable color channels, moonlight, and weather simulation. Mobius can also centralize compatible EcoTech equipment, including lights, pumps, dosing, and flow devices, within the same platform. Aquarists already using Neptune Apex can instead add wireless Apex and Apex Fusion control through MXM compatibility. MXM is relevant when consolidating supported EcoTech and AquaIllumination lights and pumps into the Apex interface is preferred. The source identifies compatibility but does not state that an MXM module is included with the XR15 package.

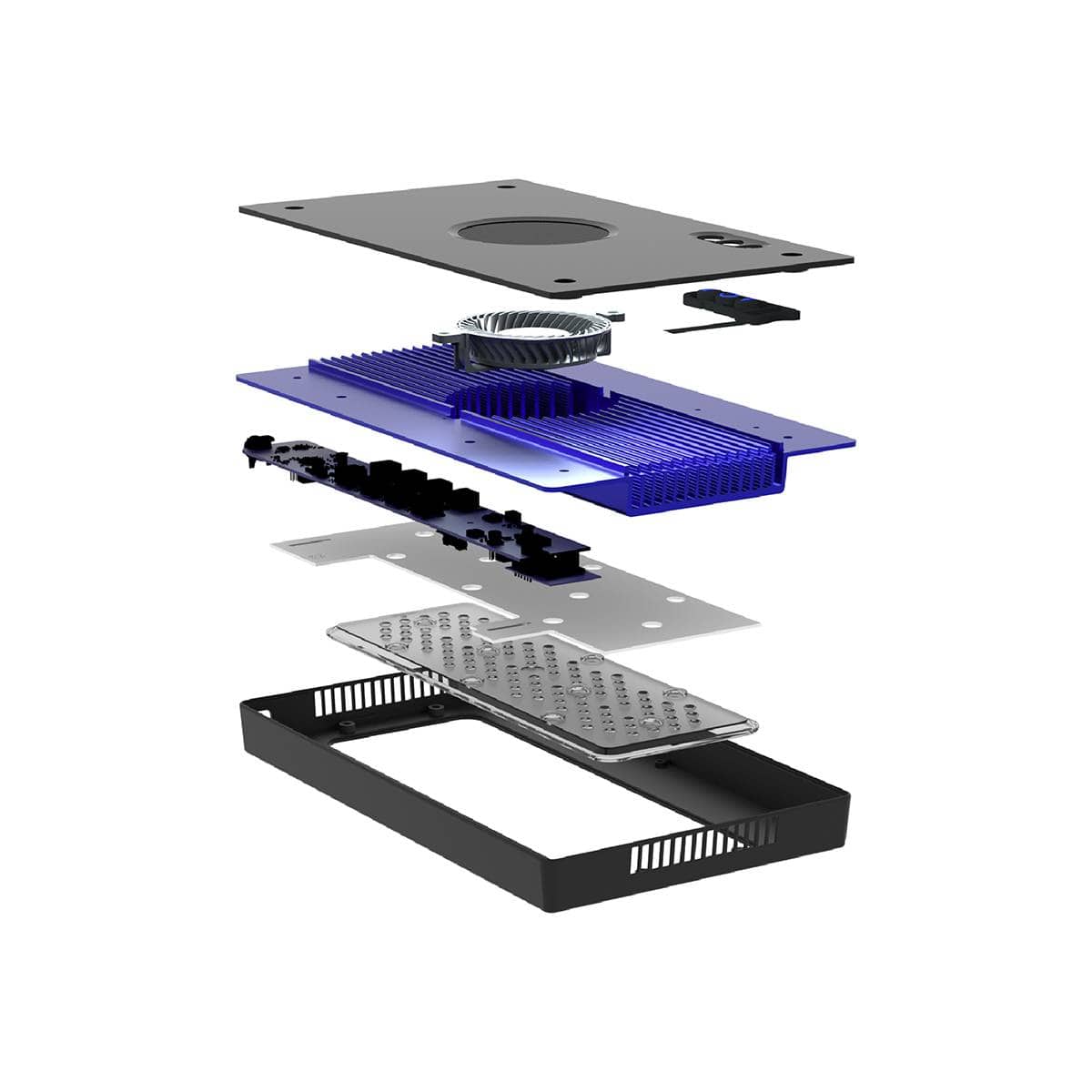

Initial tuning should begin with the intended spectral character and coverage arrangement rather than the fixture’s maximum 105-watt usage. The Pro can run the CoralLab AB+ spectrum or be adjusted through its color channels, but the source does not prescribe a universal intensity or photoperiod for a particular tank. The wide HEI2 beam, recommended mounting height, and neighboring fixture overlap all affect how a multi-light installation is organized. When changing fixture positions on a rail, consider how the movement alters overlap and shadowing around established colonies. For routine ownership, allow practical access to the 1.5-inch-high fixture, its quiet fan and heatsink, power connections, and mounting hardware. A microfiber cloth is supplied, although the source provides no specific cleaning interval or maintenance procedure.

The package contains the XR15 G6 Pro fixture, power supply, power adapter cable, microfiber cloth, eyelet mounts, and quick start guide. For a compact reef near the recommended 24-by-24-inch footprint, the XR15 offers a small housing and balanced Pro spectrum without requiring an XR30-sized lighting plan. For larger systems, its strongest distinction is modularity: several XR15 units can be positioned independently, combined on one track, or mixed with XR30 fixtures. The XR30 G6 is identified as capable of even PAR across almost four feet of coverage, making it the broader-coverage option in the supplied comparison. The XR15 remains the more placement-focused choice when compact dimensions, repeatable lighting zones, or flexible multi-fixture coverage matter more than maximizing the reach of each individual fixture.
