VorTech MP60mQD - EcoTech Marine

VorTech MP60mQD Expert Buying Guide

The EcoTech Marine VorTech MP60mQD is the largest and highest-output model in the supplied VorTech comparison, intended for large reef aquariums that need substantial, broadly distributed circulation. Its listed application range is 120 to 1,000+ gallons, with maximum output of 9,000+ GPH and adjustable power consumption from 10 to 60 watts. Those specifications make it particularly relevant to long displays, large custom systems, and high-energy reefs where one smaller pump may not move enough water across the full aquarium. Tank volume alone should not determine the setting or pump count, however. Aquarium length, aquascape density, coral placement, and the desired circulation pattern all affect how that available output should be used.

For a long aquarium, the MP60mQD’s broad flow pattern and ability to create three-dimensional circulation are more important than the maximum-flow number by itself. A long display can have adequate turnover on paper while still retaining low-movement areas behind rock structures or at the far end of the tank. The adjustable controller allows output to be reduced or increased for the actual layout rather than forcing the pump to operate continuously at maximum speed. When choosing an initial location, consider the path between the pump and the opposite end of the aquarium, including major rock structures that could interrupt that path. The goal is to use the broad output to move water through the display rather than direct all available energy into one nearby coral group.

Large and elongated reef aquariums may benefit from more than one MP60mQD when the objective is circulation across the entire footprint rather than intense flow near a single mounting point. EcoTech specifically describes paired-pump operation in Gyre Mode, where two pumps can alternate clockwise and counterclockwise gyres for periods ranging from 2 seconds to 2 hours. Wave Auto Tune Mode is also recommended in the source for use with two wireless pumps to obtain the full effect. A two-pump arrangement can therefore be chosen for coordinated patterns instead of merely duplicating maximum output. In a long tank, placing pumps to work across different sections or from opposing ends can help establish the paired circular and oscillating patterns these modes are designed to produce.

Reef Crest Mode is the MP60mQD setting most directly associated with a high-energy reef environment. It changes speed frequently to emulate crashing waves and tidal surges, and the source identifies it as a useful mode for SPS corals. This variation distinguishes it from simply running a fixed stream at full output. Short Pulse Mode provides another high-energy option, producing strong pulses at selectable intervals from 0.2 to 2 seconds. With the correct frequency, it can create a standing wave. Because the MP60mQD has 9,000+ GPH available, experienced aquarists can begin with a setting appropriate to the aquascape and then use the controller’s adjustability rather than assuming every large reef requires continuous maximum output.

The available modes also let the MP60mQD serve large mixed reefs that do not need the same flow behavior at every hour. Lagoon Mode changes speed slowly to recreate a lower-energy environment, while Tidal Swell Mode moves between calm and chaotic flow and includes a programmed detritus-cleaning surge. Night Mode can be enabled or disabled and assigned custom hours for a calmer nighttime period. Feed Mode turns wireless EcoTech pumps down to an idle speed so food is less likely to be pushed immediately into rocks or filtration. These controls are useful when a pump has enough capacity for demanding daytime circulation but the aquarium also requires scheduled periods of reduced movement.

Nutrient Transport Mode is especially relevant to long systems where suspended material must travel toward an overflow rather than settle elsewhere in the display. Its first phase uses wave motion to stir and suspend detritus. The second phase changes to surging movement intended to push those particles toward the overflow and into the filtration system. Tidal Swell Mode provides a different programmed detritus-cleaning surge, while Wave Auto Tune Mode creates a standing wave that can sweep foreign particles from the sand bed and rockwork. These modes do not remove material by themselves; they are circulation patterns intended to keep it moving toward the aquarium’s filtration path. Pump placement should therefore be considered together with overflow location and the circulation route through the display.

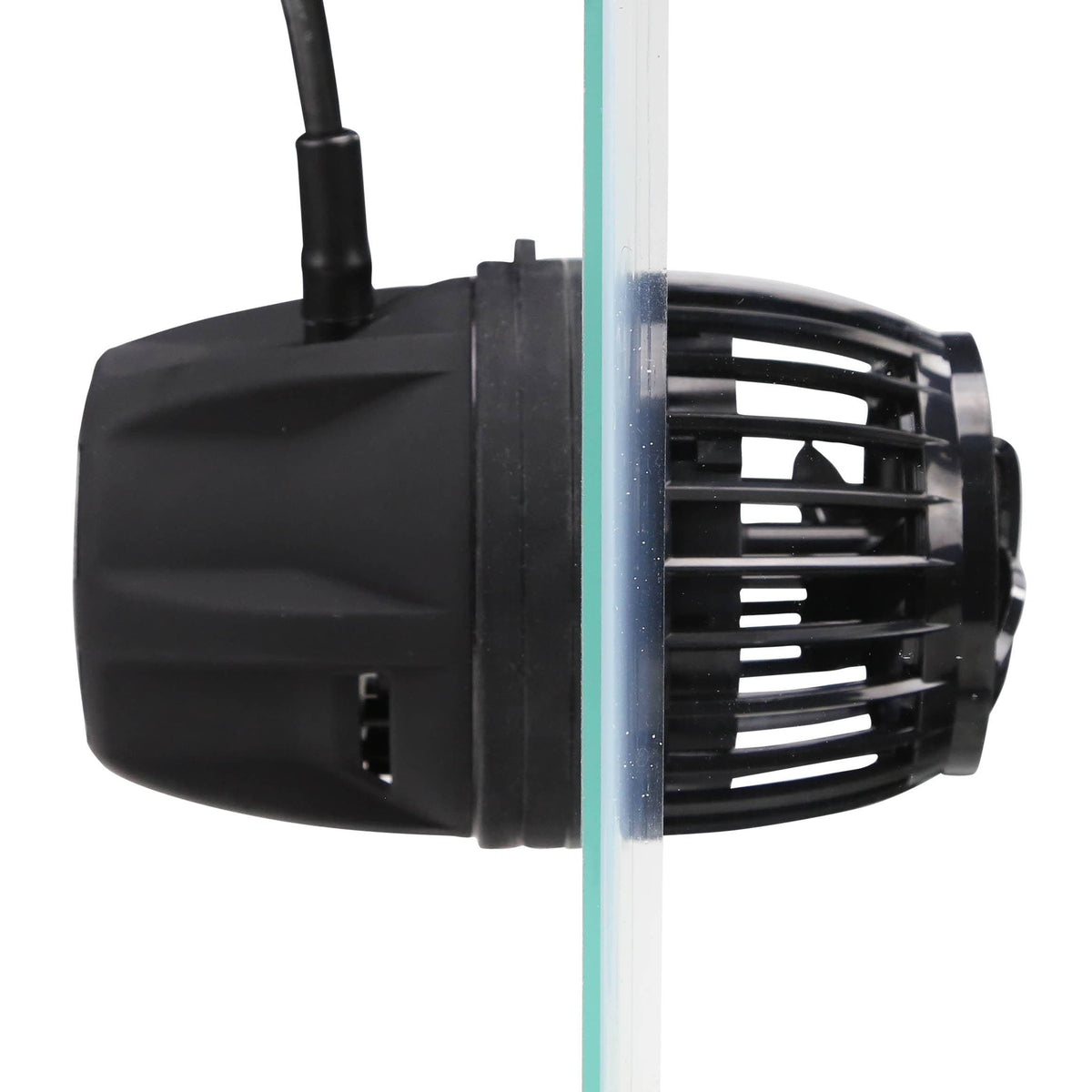

The MP60mQD’s motor and electrical components remain outside the aquarium, while the wet side and propeller are submerged and magnetically coupled through the tank wall. This arrangement reduces the amount of visible equipment inside the display and avoids placing electrical components in the water. It also means that mounting location must provide room for both the internal wet side and the external dry side. Before installation, confirm that cabinetry, wall clearance, trim, or nearby equipment will not obstruct the external assembly. The supplied package includes the pump, QuietDrive driver/controller, spacer, foam guard, mounting hardware kit, and power supply, so those model-specific installation components are provided with the unit.

Glass thickness is a critical selection point for the MP60mQD. The listed compatible range is 0.375 to 1.00 inch, or 9.5 to 26 mm. This makes the MP60 the more suitable option in the supplied comparison when a large custom aquarium uses glass thicker than the MP40mQD’s listed 0.75-inch maximum. The minimum thickness matters as well: the MP60 range begins at 0.375 inch. Measure or confirm the actual panel specification at the intended mounting location before choosing the model, particularly on aquariums with different panel dimensions or reinforced construction. The included spacer and mounting hardware should be used as part of the supplied mounting arrangement rather than treating thickness compatibility as interchangeable across VorTech models.

The included foam guard can be installed around the wet side to provide additional separation between the propeller and aquarium inhabitants. Its use should be considered when fish or invertebrates may approach the pump. Because the guard is included, it should also be accounted for when evaluating the pump’s physical fit at a proposed location. The source does not provide a cleaning interval or a model-specific disassembly procedure, so maintenance timing should not be inferred from this listing. The practical maintenance priority supported here is to keep the supplied wet-side and protective components available, preserve correct magnetic alignment through compatible glass, and avoid replacing model-specific mounting pieces with assumptions based on smaller VorTech pumps.

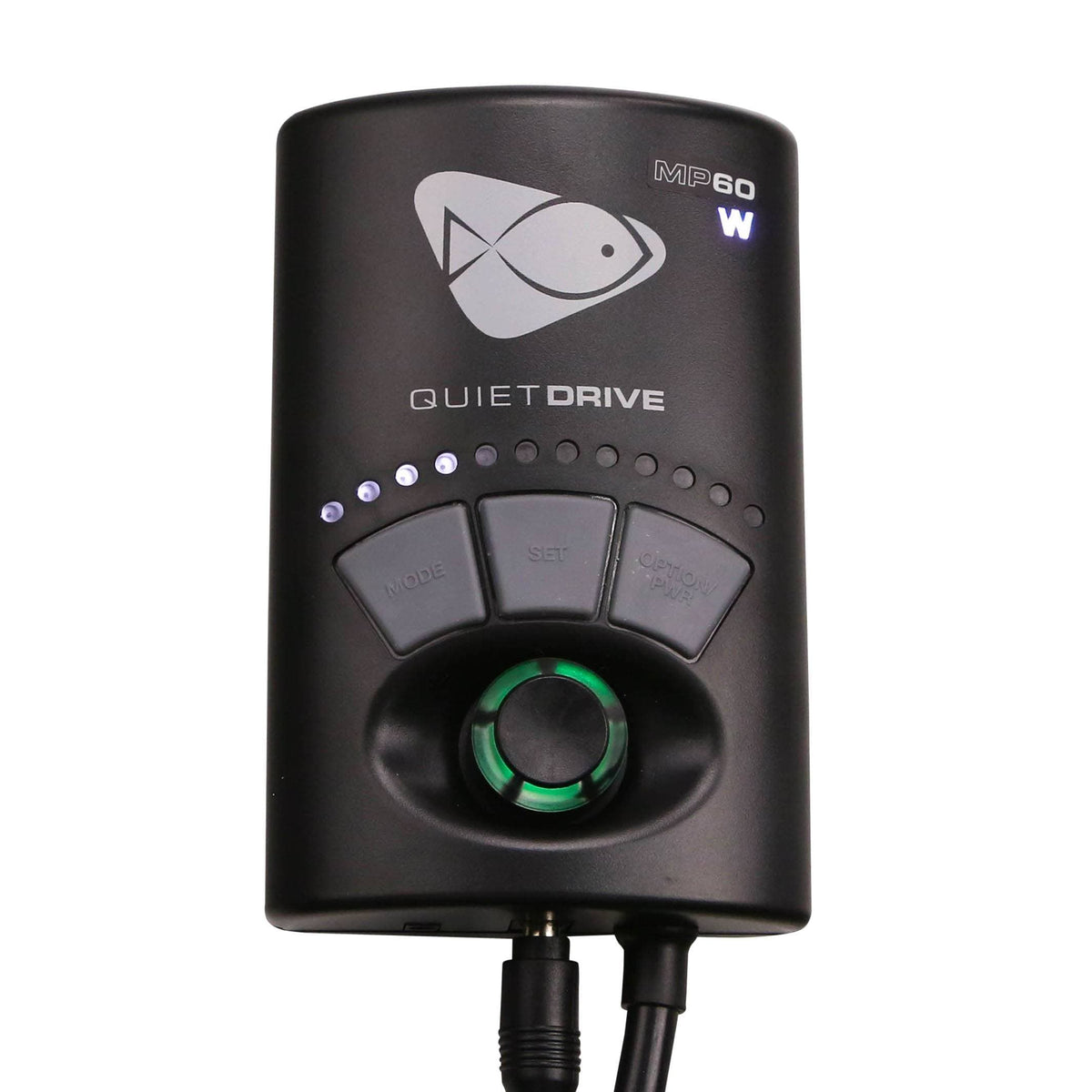

Mobius support is built into the MP60mQD, and no additional equipment is required for its wireless programming functionality. The pump connects directly to an iOS or Android device through the Mobius app, where operating modes and schedules can be configured. This is particularly useful in multiple-pump installations because wireless EcoTech pumps can participate in coordinated Feed Mode operation, and paired pumps can be programmed for modes such as Gyre and Wave Auto Tune. The MP60mQD is also listed as compatible with the Neptune Systems MXM module. With MXM, EcoTech and AquaIllumination pumps and lights can be brought under Apex and Apex Fusion control rather than requiring the user to move between separate control applications.

Compared with the MP40mQD, the MP60mQD is the choice for higher output, thicker panels, and the larger end of reef-system applications. The MP60 is listed at 9,000+ GPH for aquariums from 120 to 1,000+ gallons, accepts 0.375- to 1.00-inch glass, and consumes 10 to 60 watts. The MP40 is listed at 5,000+ GPH for 50 to 500+ gallons, supports glass up to 0.75 inch, and consumes 9 to 37 watts. Both models are Mobius Ready. An MP40 may therefore fit a system whose volume, panel thickness, and required output remain within its specifications, while the MP60 provides additional capacity for longer tanks, high-energy circulation, thick glass, or layouts where broader large-system coverage is the priority.

Selecting an MP60mQD should ultimately be based on the aquarium’s dimensions, panel thickness, aquascape, and intended circulation strategy rather than gallon rating alone. A single unit offers substantial adjustable output and 12 flow modes, but a long display may call for multiple pumps when the goal is an alternating gyre, a stronger standing-wave effect, or circulation from more than one location. Confirm the 0.375- to 1.00-inch glass range first, plan clear space for both sides of the magnetic assembly, and decide whether the system needs the MP60’s 9,000+ GPH capacity over the MP40’s 5,000+ GPH. The supplied record confirms Mobius and MXM support but does not state EcoTech Battery Backup compatibility, so backup-power support should be verified separately before it becomes part of the installation plan.
